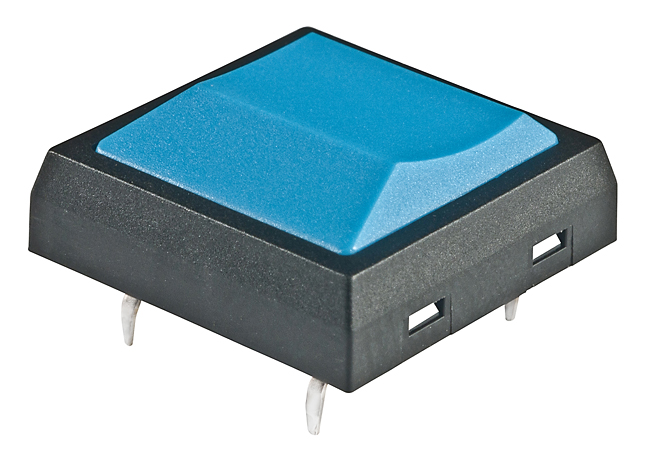

NKK Switches JF15SP3G Tactile Push-Button Switch
The ultra-thin tactile push-button switch offers a low-profile, 5mm height ideal for PCB mounting in space-constrained electronic devices. Its rubber seal construction prevents contact contamination and supports automated soldering and cleaning. Designed for low-voltage, low-current logic circuits, it features a crisp tactile dome contact for reliable feedback and long operational life. Various actuator shapes and colors, including sculptured, piano, round, and square, provide versatile design options. Terminals are crimped for secure mounting, with compatibility for wave soldering and automated cleaning, ensuring durability and high performance in demanding electronic applications.
NKK Switches JF15SP3G Tactile Push-Button Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute minimum
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 500,000 operations minimum
- Nominal Operating Force: 1.96N (sculptured), 2.0N (piano), 3.0N (square & round flush)
- Total Travel: 0.016" (0.4mm) for flush actuators, 0.031" (0.8mm) for sculptured & piano actuators
- Materials: Actuator - Polyamide, Case - Glass fiber reinforced polyamide, Seal - Nitrile butadiene rubber, Base - Glass fiber reinforced polyester
- Terminals: Brass with silver plating, Crimped for secure mounting
- Operating Temperature Range: 25°C to +85°C (-13°F to +185°F)
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm, 2 hours in 3 directions
- Shock: 50G acceleration in 6 directions
- Soldering: Wave and manual soldering recommended, automated cleaning supported
