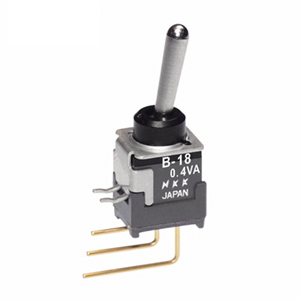

NKK Switches B18AV Sealed Mini Toggle Switch
The B18AV toggle switch is a compact, panel-mountable switch designed for electronic and industrial applications that demand space-saving and reliable switching solutions. It features a sealed, antistatic body construction, making it resistant to contact contamination and suitable for low-voltage, low-current logic-level circuits. This toggle incorporates award-winning STC contact mechanism with smooth detent actuation and increased contact stability. It supports optional threaded bushings for IP65 panel sealing, enhancing durability in harsh environments. Ideal for space-constrained automation, control, and instrumentation systems requiring precise, dependable switching operations with enhanced static protection.
NKK Switches B18AV Sealed Mini Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC, applicable range 0.1mA to 0.1A @ 20mV to 28V
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations min, 50,000 for certain circuits
- Operating Temperature Range: -30°C to +85°C (-22°F to +185°F)
- Humidity: 90-95% RH for 96 hours @ 40°C
- Vibration & Shock: Meets standards with 10-55Hz, 1.5mm amplitude, 50G acceleration
- Material: Nickel-plated brass, carbon-impregnated bushing, support bracket, nitrile rubber gasket
- Dimensions: 26° throw, size options include 394” (10.0mm), 248” (6.3mm) bat with various bushings
- Soldering: Compatible with wave, manual, and automated cleaning processes
- Certifications: UL9AV-0 available; not tested for UL or CSA certification
Buy the Buy NKK Switches Toggle Switch Part Number B18AV Online
Discover the NKK B18AV toggle switch, a robust, panel-mount solution engineered for low-voltage applications. Its sealed, antistatic construction ensures static discharge resistance, while optional IP65-rated bushings facilitate secure panel sealing. With a long mechanical lifespan exceeding 100,000 cycles and superior contact stability thanks to award-winning STC mechanisms, this switch is ideal for automation, instrumentation, and control panels in demanding environments. Buy online today and enhance your system's reliability with this space-saving, corrosion-resistant toggle switch.
Buy NKK Switches B18AV toggle switch now and experience unmatched reliability and space-efficient performance in industrial control applications.
Frequently Asked Questions
Where can I buy NKK Switches B18AV?
You can click on the BUY or RFQ button to purchase B18AV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B18AV?
You can download the B18AV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B18AV?
NKK Switches
