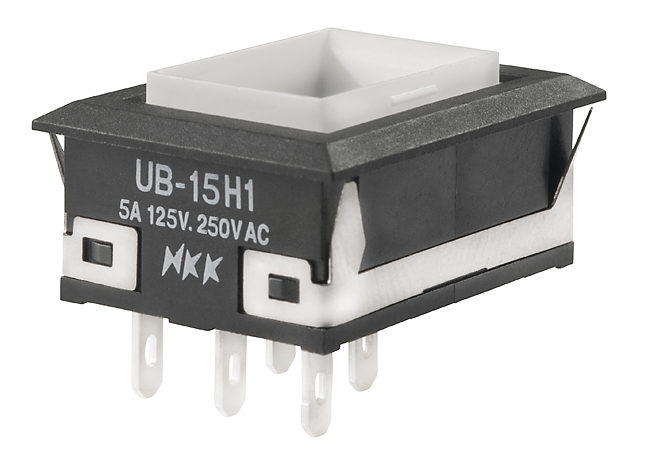

NKK Switches UB15NKW015D Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch suitable for PCB mounting and soldering applications. Designed for easy installation and reliable operation in various electronic devices.
NKK Switches UB15NKW015D Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: Single pole, SPDT
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations at 5A 125/250V AC
- Electrical Capacity: 5A at 125V/250V AC, 0.4VA max at 28V DC
- Contact Resistance: 50 milliohms max for silver
- Insulation Resistance: 200 megaohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Operating Temperature Range: -20°C to +50°C for non-illuminated, -25°C to +50°C for illuminated
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- LED Specs: Bright or super bright LEDs, color options include red, amber, green, white, blue; forward voltage 1.85V to 3.2V
- Dimensions: Approximate size 15.0mm x 15.0mm for square models, 20.0mm x 12.0mm for rectangular models
- Soldering Method: Wave or manual soldering, Profile A
Buy the Buy NKK Switches UB15NKW015D Low Profile Pushbutton Part Number UB15NKW015D Online
Purchase the NKK Electronic Low Profile Pushbutton Switch UB15NKW015D online today. This compact, durable switch features reliable contact ratings, LED illumination options, and easy PCB mounting. Perfect for space-constrained applications requiring fast actuation and excellent electrical performance. Enjoy quick delivery and secure checkout while ensuring your electronic project or control system benefits from high-quality components designed for longevity and consistent operation.
Get NKK Switches UB15NKW015D today—built for precision and long-lasting durability in compact electronic control panels.
Frequently Asked Questions
Where can I buy NKK Switches UB15NKW015D?
You can click on the BUY or RFQ button to purchase UB15NKW015D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15NKW015D?
You can download the UB15NKW015D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15NKW015D?
NKK Switches
