NKK Switches B22HH Subminiature Toggle Switch
This is a subminiature toggle switch designed for electronic and electrical applications. It features a compact size suitable for tight spaces and precise control. Constructed with sealed body, antistatic superstructure, and epoxy sealed terminals, it prevents contact contamination and static discharge. Ideal for low-voltage, low-current logic-level circuits, it offers high reliability, smooth actuation, and corrosion-resistant materials, ensuring consistent performance in space-constrained environments. Suitable for automation, instrumentation, and control applications requiring space-saving toggle switches.
NKK Switches B22HH Subminiature Toggle Switch Specifications:
- Material: Brass with Bright Nickel finish, carbon blended polyamide, nickel plated zinc alloy, nitrile butadiene rubber, glass fiber reinforced polyamide, tin plated phosphor bronze, gold plated copper alloy.
- Operating Temperature Range: -30°C through +85°C (-22°F through +185°F).
- Contact Resistance: 50 milliohms maximum.
- Insulation Resistance: 500 megohms minimum @ 500V DC.
- Dielectric Strength: 500V AC minimum for 1 minute.
- Mechanical Life: 100,000 operations minimum for On-None-On & On-Off-On circuits.
- Electrical Life: 50,000 operations minimum.
- Nominal Operating Force: Toggle with Long Paddle 1.47N momentary, 1.18N maintained; Short Paddle 2.72N momentary, 1.84N maintained.
- Angle of Throw: 26°.
- Mounting: Panel seal threaded bushing, support bracket recommended.
- Soldering: Wave soldering recommended, manual soldering acceptable.
- Environmental: Operating temperature -30°C to +85°C, humidity 90-95% for 96 hours, vibration and shock rated for durability.
- Standards & Certifications: UL9AV-0; not UL or CSA certified, designed for low-voltage logic circuits.
- Design: Totally sealed body, static discharge prevention, epoxy sealed terminals, STC contact mechanism for stability and reliability.

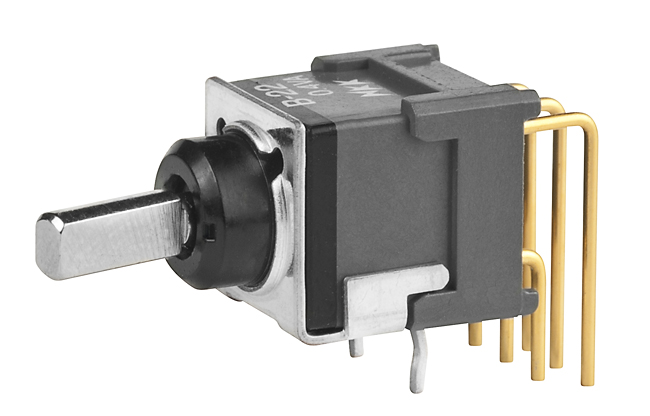

Buy the Buy NKK Switches Process Sealed Subminiature Toggle Part Number B22HH Online
Experience the high-quality performance of the NKK Process Sealed Subminiature Toggle Switch B22HH. Designed for space-constrained electronic applications, it offers reliable switching, sealed body construction, and static discharge prevention. Suitable for low-voltage, low-current circuits, it features corrosion-resistant materials and a compact size for precise control in automation, instrumentation, and control panels. Easy to install and maintain, this toggle switch ensures long-lasting performance and ease of integration into your system, making it a dependable choice for electronics professionals.
Buy NKK Switches B22HH now and experience unmatched reliability and space-saving performance in your electronic control systems.
