NKK Switches SK12AG30 Miniature Key Lock
A miniature key lock designed for secure access control in various applications. Features compact size and reliable locking mechanism.
NKK Switches SK12AG30 Miniature Key Lock Specifications:
- Material: Brass alloy with bright nickel plating
- Handle: ABS resin handle
- Number of keys supplied: 2
- Throw Model: 90° angular throw
- Position: Key removable in position 2
- Locking Mechanism: Bifurcated, self-wiping contact
- Contact Material & Rating: Gold over copper, 0.4VA maximum @ 28V AC/DC
- Terminal Type: Straight PC terminals with bracket, right angle PC terminals
- Physical Dimensions: Compact size with dimensions approximately 0.51 inch (13 mm) in width
- Environmental Resistance: Operating temperature range -25°C to +70°C, humidity 90-95% for 240 hours
- Standards & Certification: Not tested for UL or CSA certifications, designed for low-voltage logic circuits
- Mechanical Life: Minimum 30,000 cycles
- Electrical Life: Minimum 10,000 cycles
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute

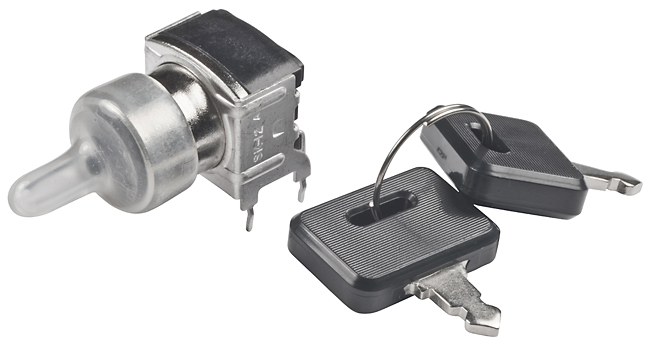

Buy the NKK SK12AG30 – Reliable Key Lock for Industrial Applications
Enhance your security with the miniature key lock from NKK. Featuring a compact design, durable construction, and a reliable locking mechanism, this device is ideal for space-constrained access control in machinery and cabinets. Supplied with two keys and suitable for low-voltage applications, it ensures safety and quick operation. Easy to install with straight or right angle PCB terminals, it withstands harsh environments with high humidity and temperature variation. Perfect for industrial, electronic, and security systems requiring dependable key locking solutions.
Order your NKK Series SK12AG30 key lock today and secure your equipment with a compact, dependable locking solution for industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches SK12AG30?
You can click on the BUY or RFQ button to purchase SK12AG30 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part SK12AG30?
You can download the SK12AG30 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of SK12AG30?
NKK Switches
