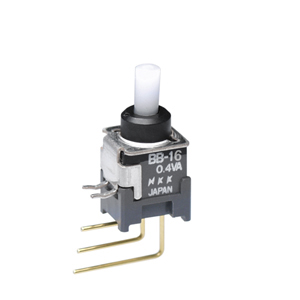

NKK Switches BB16AV Subminiature Pushbutton Switch
This compact, process sealed subminiature pushbutton switch is ideal for electronic devices, offering reliable momentary or maintained operation. Its sealed body prevents contamination, ensuring durability and consistent performance in low-voltage, logic-level circuits. Designed for space-constrained applications, it features a 6mm bushing, static discharge protection with antistatic superstructure, and a tactile, tilt, or smooth actuation. The switch supports wave soldering, manual cleaning, and operates within -30°C to +85°C temperatures, meeting UL9AV-0 standards. Available in multiple circuit and terminal configurations for versatile integration.
NKK Switches BB16AV Subminiature Pushbutton Switch Specifications:
- Size: 6mm diameter bushing
- Sealed construction prevents contact contamination
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations min
- Electrical Life: 50,000 operations min (momentary), 25,000 (alternate)
- Operating Temp Range: -30°C to +85°C
- Vibration: 10-55Hz, 1.5mm amplitude
- Shock: 50G acceleration in 6 directions
- Material: Polyacetal plunger, carbon blended polyamide bushing, glass fiber reinforced case
- Terminals: PC board compatible, SS, straight or right angle
- Standards: UL9AV-0, wave soldering profile A, manual soldering profile B
- Compliance: Not tested for UL recognition or CSA certification
Buy the Buy NKK Process Sealed Subminiature Pushbuttons Part Number BB16AV Online
Purchase the NKK subminiature sealed pushbutton switch online now to benefit from its space-efficient design, reliable operation, and static discharge protection. Ideal for electronic devices requiring low-voltage switching, it features a sealed body, robust materials, and supports wave and manual soldering techniques. Its compact size makes it perfect for space-constrained panels, ensuring durability against contamination, vibration, and shock, with long-term mechanical and electrical life. Elevate your project’s reliability by choosing this high-quality, easy-to-mount switch available for quick online purchase.
Order your NKK Series BB BB16AV sealed pushbutton today and ensure reliable, space-saving operation for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches BB16AV?
You can click on the BUY or RFQ button to purchase BB16AV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part BB16AV?
You can download the BB16AV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of BB16AV?
NKK Switches
