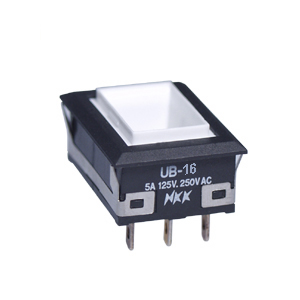

NKK Switches UB16NKG015C Low Profile Pushbutton Switch
A low-profile illuminated pushbutton switch suitable for PC and solder mounting. Designed for easy operation and reliable performance in various electronic applications.
NKK Switches UB16NKG015C Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: SPDT, Double Pole options available
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimal between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for alternate action
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -25°C to +50°C for illuminated models
- Ingress Protection: Humidity 95% for 96 hours @ 40°C
- Vibration Resistance: 3 Hz to 55 Hz, 1.5 mm amplitude, 2 hours in 3 directions
- Shock Resistance: 50G in 6 directions with shocks
- Soldering: Wave soldering and manual soldering profiles as per specifications
- Certifications: UL recognized (File No. E44145), CSA certified (File No. 023535_0_000)
Buy the NKK Series UB Switch: UB16NKG015C Low Profile Illuminated Pushbutton
Purchase the NKK UB16NKG015C low-profile illuminated pushbutton via our online store for fast delivery and competitive pricing. This compact switch features reliable electrical performance rated at 5A and includes options for PC or solder mounting, making it ideal for space-constrained applications. Its durable housing is made from UL94V-0 glass fiber reinforced polyamide, ensuring longevity in various environments. Easily integrate this switch into your electronic or automation systems, benefiting from its high durability, proven certifications, and excellent operational features.
Buy NKK UB16NKG015C low-profile illuminated pushbutton now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches UB16NKG015C?
You can click on the BUY or RFQ button to purchase UB16NKG015C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16NKG015C?
You can download the UB16NKG015C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16NKG015C?
NKK Switches
