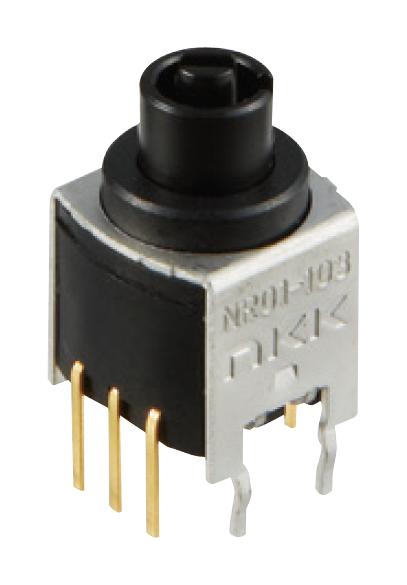

NKK Switches NR01103ANG13 Sealed Rotary Switch
The NRO1 Series subminiature process sealed rotary switches are compact, reliable, and designed for precise control in small spaces. Equipped with a distinctive detent mechanism for crisp actuation, these switches offer high-density mounting, sealed construction with internal o-ring, gasket, and insert-molded terminals to prevent contamination. Suitable for low-voltage circuits, they feature durable materials, reinforced mounting brackets, and are ideal for power, medical, and telecommunication equipment applications. Their robust design ensures long-term performance and dependable operation in various environments.
NKK Switches NR01103ANG13 Sealed Rotary Switch Specifications:
- Housing Material: Glass fiber reinforced polyester
- Base Material: Glass fiber reinforced polyamide
- Rotor Material: Polyacetal
- Contact Material: Beryllium copper with gold plating
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 50V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Operating Temperature Range: -25°C to +70°C
- Vibration: 10 ~ 55Hz, peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Soldering: Wave and manual soldering compatible
- Mounting: Crimped bracket legs for secure PCB attachment
- Sealed Construction: Internal o-ring, gasket, and molded terminals for contamination resistance
Buy the NKK Series NRO1 Rotary Switch: NR01103ANG13
Order the NKK NRO1 Series sealed rotary switch online now to ensure reliable, precise control in your power, medical, or telecom equipment. Designed for durability and easy integration, these switches feature a compact size with a crisp detent mechanism, sealed construction, and reinforced mounting brackets to withstand harsh environments. Perfect for applications requiring high-density mounting and dependable operation, these switches are available with various terminal configurations and actuator options. Secure your order today and enhance your equipment with proven switching technology.
Get NKK NRO1 rotary switch today—built for precision, high reliability, and durability in compact control applications.
Frequently Asked Questions
Where can I buy NKK Switches NR01103ANG13?
You can click on the BUY or RFQ button to purchase NR01103ANG13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part NR01103ANG13?
You can download the NR01103ANG13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of NR01103ANG13?
NKK Switches
