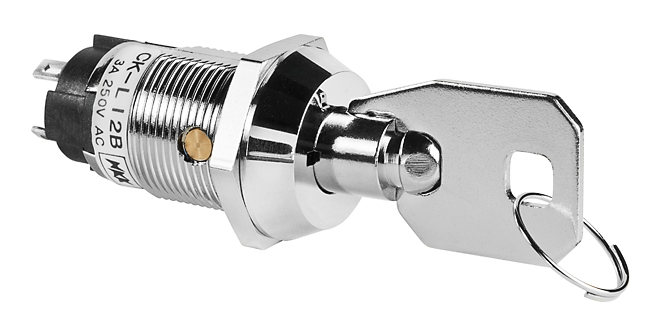

NKK Switches CKL12BTW01001 High Security Key Lock Switch
High-security key lock featuring solder lug connections designed for reliable security and seamless integration in electrical installations. The switch employs rugged die-cast housing and high insulative materials, capable of withstanding over 15 kilovolts of electrostatic discharge for superior safety. It operates with a resistive load of 3A at 250V AC, ensuring consistent performance. The switch’s internal mechanism offers high reliability with a long operating life, suitable for demanding industrial and security applications with secure locking features and easy key removal.
NKK Switches CKL12BTW01001 High Security Key Lock Switch Specifications:
- Electrical Capacity: 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Electrical Life: 10,000 cycles minimum
- Electrostatic Discharge: Withstands 15 kilovolts minimum (CKM models)
- Bushing Diameter: 16mm
- Material Housing: Brass with nickel plating, ABS handle; or zinc alloy with chrome plating
- Operating Temperature Range: -25°C to +70°C
- Humidity Resistance: 90-95% for up to 240 hours
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm (CKM models)
- Shock Resistance: 50G (CKM) or 30G (CKL)
- Terminal Type: Solder lug terminals
- Key Lock: Tubular key with push-and-lock mechanism (CKL & CKM)
- Degree of Rotation: 90° for 2-position & 45° for 3-position
Buy the NKK Series CK Keylocks: CKL12BTW01001
Secure your electrical projects with the NKK Series CK high-security key lock switch, featuring rugged construction, high dielectric strength, and easy key removal. Perfect for industrial security, automation, and control systems, this switch offers reliable performance with a resistive load of 3A at 250V AC. Its sealed terminals prevent contaminants, and the sturdy housing withstands harsh environments. Purchase online today to enjoy dependable security, long service life, and seamless integration into your electrical installations—an ideal choice for demanding industrial and security solutions.
Order your NKK Series CK high-security solder lug key lock switch today and ensure reliable, secure electrical control for demanding industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches CKL12BTW01001?
You can click on the BUY or RFQ button to purchase CKL12BTW01001 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CKL12BTW01001?
You can download the CKL12BTW01001 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CKL12BTW01001?
NKK Switches
