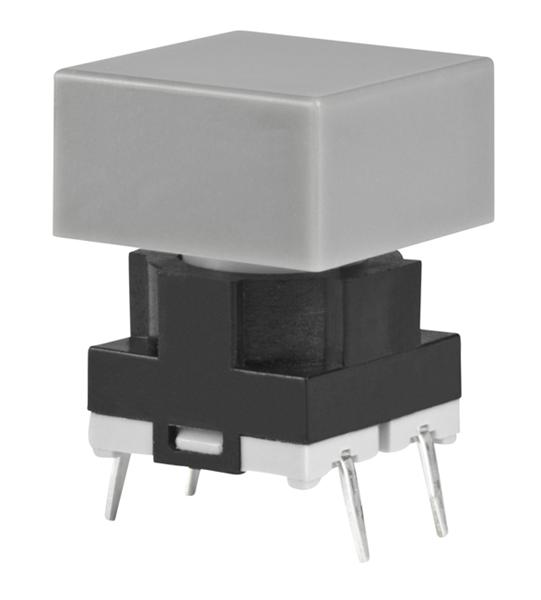

NKK Switches JB15HAP2H Low Profile Tactile Switch
This high-quality low-profile tactile switch is ideal for PCB applications, offering reliable feedback and long life. Designed with sealed construction, it prevents contact contamination and allows automated soldering and cleaning. The switch features a compact form factor with options for straight or right-angle mounting. It provides a crisp tactile response, ensuring positive circuit transfer, and is suitable for low-voltage, low-current, logic-level circuits. Constructed with durable materials, it guarantees performance in various environmental conditions, with a mechanical life of up to 5 million operations.
NKK Switches JB15HAP2H Low Profile Tactile Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC maximum (standard force), 125mA @ 24V DC maximum (high force)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N for JB15, 2.65N for JB1SH
- Total Travel: 0.010" (.250mm) or 0.012" (.300mm)
- Actuator Material: Glass fiber reinforced PBT, polyacetal, or UL94V-0 polyamide
- Case & Base: Glass fiber reinforced PBT, UL94V-0 rated
- Sealing: IP67 according to IEC60529 standard
- Environment: -55°C to +70°C, 90-95% humidity for 240 hours at 40°C, vibration up to 10-55Hz, shock of 50G
- Soldering & Cleaning: Wave and manual soldering recommended; automated cleaning compatible
- Standards: UL UL94V-0 rated case & base, not UL or CSA recognized for switches
