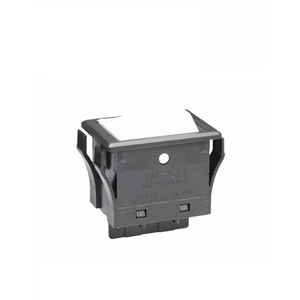

NKK Switches JWL11RBA Power Rocker Switch
A durable power rocker switch with snap-in mounting, designed for reliable operation in electronic and electrical systems. It features high inrush current handling capabilities of 10 and 16 Amps, making it suitable for demanding applications requiring high electrical capacity. The switch is constructed with flame-resistant materials and complies with UL94V-0 standard, ensuring safety and longevity. It is resistant to dust and moisture through panel seal versions meeting IP67 standards, providing excellent environmental protection. The switch supports multiple configurations including single pole and double pole, with optional barrier and insulation features for versatile deployment.
NKK Switches JWL11RBA Power Rocker Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC for JWM & JWMW; 16A @ 125/250V AC for JWL & JWLW; 10A @ 30V DC for JWMW; 5A @ 72V DC for JWL.
- Contact Resistance: 10 milliohms max (JWM & JWMW); 20 milliohms max (JWL & JWLW).
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC.
- Dielectric Strength: 2,000V AC minimum between contacts; 4,000V AC between contacts and case.
- Mechanical Life: 25,000 operations.
- Electrical Life: 25,000 operations.
- Operating Temperature Range: -25°C to +70°C (JWM & JWL); -25°C to +85°C (JWMW & JWLW).
- Housing Material: Polyamide with UL94V-0 standard; Barrier material: Polyamide.
- Contact Material: Silver alloy with silver plating.
- Terminals: Molded and epoxy sealed to prevent contamination.
- Solder Lug/Quick Connect Terminals: 0.110” (2.8mm) & 0.187” (4.75mm).
- Panel Thickness Range: 0.039” - 0.157” (1.0mm - 4.0mm) without barrier; 0.024” - 0.126” with barrier.
- Environmental Sealing: IP67 for panel seal models, dust-resistant inner seal for others.
- Compliance: UL94V-0, UL, CSA, VDE standards.
Buy the Buy NKK Switches High Inrush Power Rocker Part Number JWL11RBA Online
Experience reliable power switching with the NKK Power Rocker Switch, engineered for demanding electrical systems. Featuring high inrush current capacity of 10 and 16 Amps, plus environmental sealing options meeting IP67 standards, ensuring dust and moisture resistance. Its snap-in mounting design facilitates easy installation, while the internal construction with UL94V-0 flame-resistant materials guarantees safety and durability. Ideal for industrial, automation, and electronic applications, this switch combines robustness, convenience, and excellent electrical performance, available for purchase online today for seamless system integration.
Get NKK Switches JWL11RBA today—built for high inrush currents, environmental resilience, and long-lasting electrical performance.
Frequently Asked Questions
Where can I buy NKK Switches JWL11RBA?
You can click on the BUY or RFQ button to purchase JWL11RBA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JWL11RBA?
You can download the JWL11RBA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JWL11RBA?
NKK Switches
