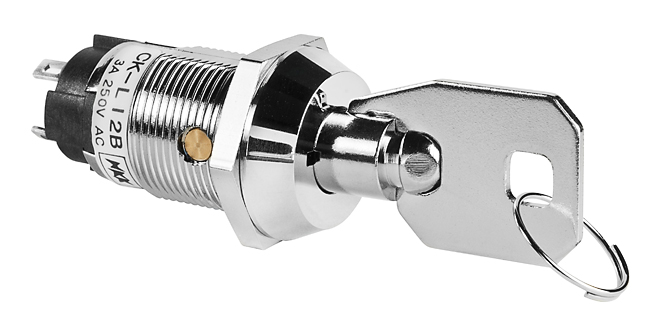

NKK Switches CKL12BTW01016 High Security Lock
High-security key lock with solder lug terminals designed for secure locking applications, combining rugged construction and high dielectric strength for reliable operation. It features a key lock mechanism with tubular and flat key options, stainless steel hardware for durability, and epoxy sealed terminals to prevent contaminants. Suitable for sensitive security environments, it withstands electrical surges over 15 kilovolts, operates within -25°C to +70°C, and supports up to 3A at 250V AC. Perfect for industrial and security control panels requiring robust, high-insulation features. Easy to install with solder lug terminals ensuring secure connections and long service life.
NKK Switches CKL12BTW01016 High Security Lock Specifications:
- Electrical Capacity: 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC between contacts and case
- Environmental Ratings: -25°C to +70°C operating temperature, 90-95% humidity for 240 hours, vibration 10-55Hz, 1.5 Nm max torque
- Materials: Brass with nickel plating, ABS handle, epoxy sealed terminals
- Mounting Bushing: 16mm diameter, brass with nickel plating
- Terminal Type: Solder lug
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock Resistance: 50G acceleration
- Key Type: Tubular, flat, with random key number assignment
- Additional Features: High dielectric strength and anti-static features for CKM models
Buy the Buy High Security Keylocks Series CK Part Number CKL12BTW01016 Online
Purchase the high-security lock featuring solder lug terminals today to ensure reliable, durable, and secure locking in your industrial control panels. This lock supports up to 3A at 250V AC and features epoxy sealed terminals, making installation quick and protected against environmental contaminants. Its rugged construction with brass components and epoxy sealing offers long-term durability, high dielectric strength, and resistance to vibration and shocks. Ideal for security-sensitive environments, this lock combines safety, reliability, and ease of installation, providing excellent value for industrial security needs.
Order your High Security Keylocks Series CK CKL12BTW01016 today and secure your industrial applications with reliable locking solutions.
Frequently Asked Questions
Where can I buy NKK Switches CKL12BTW01016?
You can click on the BUY or RFQ button to purchase CKL12BTW01016 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CKL12BTW01016?
You can download the CKL12BTW01016 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CKL12BTW01016?
NKK Switches
