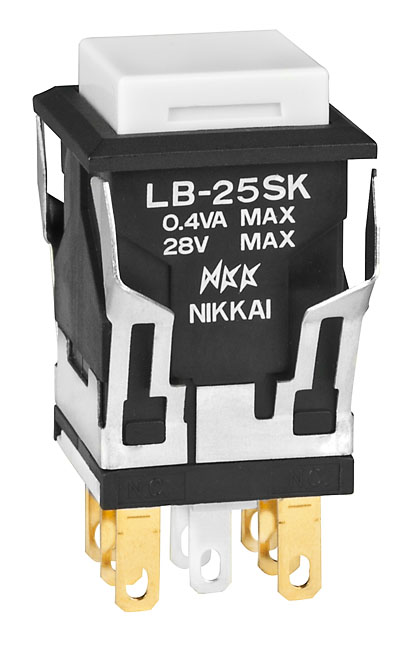

NKK Switches LB25SKG01BJ Illuminated Pushbutton
The Standard size illuminated pushbutton switch features snap-in mounting for easy installation and clear surface illumination, suitable for panel applications. It offers various LED options, including bright and super bright LEDs in multiple colors, with optional resistors for voltage compatibility. Constructed with durable polycarbonate and GFR polyamide, it provides long electrical life, tactile feedback, and IP65 sealing when equipped with panel seal models. Ideal for industrial controls requiring reliable visual indication, it includes comprehensive ratings for resistive loads, contact resistance, and insulation resistance, with certifications for UL and CSA. This switch can be customized with legends and cap colors to match specific control panel aesthetics.
NKK Switches LB25SKG01BJ Illuminated Pushbutton Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC & 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver contacts, 100 milliohms max for gold contacts
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1000V AC between contacts, 1500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations min.
- Electrical Life: 200,000 operations min.
- Nominal Operating Force: 4.9N maximum on cap
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total Travel 0.118” (3.0mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0), housing color: Black
- Switch Terminals: Solder lug and quick connect, epoxy sealed
- Environmental Data: Operating temperature -25°C to +50°C with illuminated, -25°C to +70°C nonilluminated; humidity 95% for 96 hours at 40°C; vibration 1.5mm at 1-55Hz; shock 50G
- Panel Seal Models: IP65 rated, reduces switch depth by 0.020” (0.5mm)
Buy the NKK Switches LB25SKG01BJ – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK illuminated pushbutton switch LB25SKG01BJ online today for robust performance, easy installation, and reliable visual indication. Designed with snap-in mounting, it is ideal for industrial control panels, offering various LED colors, optional resistors, and IP65 sealing for durability in harsh environments. The switch provides long electrical and mechanical life, ensuring dependable operation with certifications for UL and CSA compliance. Customize with legends and cap colors to match your panel's aesthetics and operational needs. Buy now to enhance your control solutions with trusted quality.
Get NKK Switches LB25SKG01BJ today—built for precision, long-lasting durability, and easy control panel integration.
Frequently Asked Questions
Where can I buy NKK Switches LB25SKG01BJ?
You can click on the BUY or RFQ button to purchase LB25SKG01BJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25SKG01BJ?
You can download the LB25SKG01BJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25SKG01BJ?
NKK Switches
