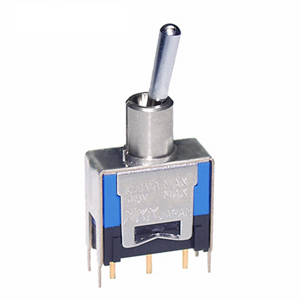

NKK Switches D22013B Miniature Toggle Switch
This is a PCB-mounted miniature toggle switch designed for compact electronic applications. It provides reliable on/off switching capability and is suitable for use on printed circuit boards in various electronic devices.
NKK Switches D22013B Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum at 48V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 50,000 operations minimum for locking lever models
- Electrical Life: 100,000 operations minimum for bat lever models
- Contact Material: Brass with chrome or nickel plating
- Materials & Finishes: Brass with chrome plating, brass with nickel plating, phosphor bronze with tin plating
- Actuator Type: Bat Lever, Locking Lever, or standard toggle
- Operating Temperature Range: -10°C to +70°C (+14°F to +158°F)
- Environmental Resistance: 90-95% humidity for 240 hours @ 40°C, vibration, shock resistance
- Soldering Method: Wave soldering recommended; manual soldering max 3 seconds @ 350°C
- Housing: UL94V-0 rated resin
- Standards & Certifications: UL94V-0 flammability rating, UL recognition for housing & base
- Terminal Type: Round PC terminals, 0.8mm diameter, conforming to 2.54mm grid spacing
Buy the Buy NKK PCB Mount Miniature Toggle Switch Part Number D22013B Online
Order the NKK D22013B miniature toggle switch online today to ensure your electronic projects benefit from dependable on/off switching, compact design, and high durability. Ideal for PCB assembly in low-current applications, it guarantees excellent performance with a rated electrical capacity of 0.4VA at 48V. Its robust construction and UL94V-0 rated housing provide safety and longevity, making it an essential component for designers and engineers seeking quality, reliability, and easy installation in their electronic systems.
Get NKK D22013B today—built for precision, reliable switching, and long-lasting durability in electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches D22013B?
You can click on the BUY or RFQ button to purchase D22013B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part D22013B?
You can download the D22013B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of D22013B?
NKK Switches
