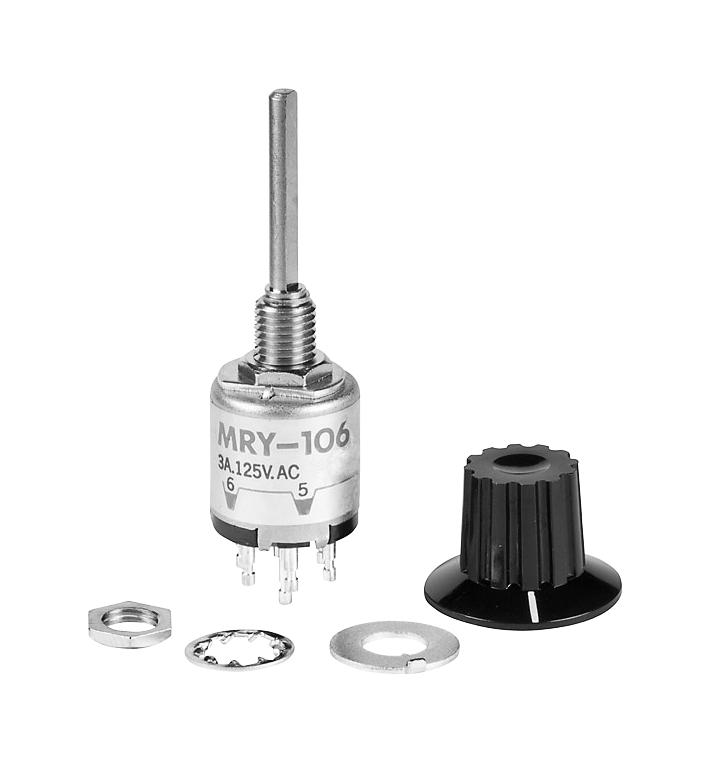

NKK Switches MRY106A Rotary Switch
The MRY106A is a rotary switch with a 2-6 position configuration, designed for reliable electrical performance and durability in control applications. Featuring a rotary contactor dish mechanism, it offers high contact reliability and break-before-make contact timing. Made with zinc-plated steel and silver alloy contacts, it supports resistive loads up to 3A at 125V AC and 2A at 30V DC. The switch operates within -10°C to +70°C, ensuring durability in various environments. Its compact size makes it suitable for a wide range of automation and control systems, with terminal options including turret and solder lug types for easy wiring.
NKK Switches MRY106A Rotary Switch Specifications:
- Number of Positions: 2-6
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute
- Electrical Load: 3A @ 125V AC, 2A @ 30V DC
- Contact Material: Silver alloy
- Base Material: Zinc-plated steel
- Operating Temperature Range: -10°C to +70°C
- Environmental Conditions: 90-95% humidity for 96 hours @ 40°C, vibration and shock resistance
- Mounting: Panel thickness up to 2.7mm, standard hardware included
- Standards & Certifications: Recognized with UL marking when ordered accordingly
- Additional Features: Break-before-make contact, positive detent, adjustable stopper plate
Buy the Buy NKK Rotary Switch Part Number MRY106A Online
Enhance your control systems with the NKK MRY106A rotary switch, offering 2-6 positions, durable silver contacts, zinc-plated steel construction, and UL recognition when ordered with marking. This high-performance switch ensures reliable operation across various environments, supporting resistive loads up to 3A at 125V AC. Its break-before-make contact mechanism prevents accidental short circuits, while adjustable stopper plates allow customizable position settings. Perfect for automation, industrial control, and instrumentation, it ensures precise, safe, and long-lasting performance for your electrical projects.
Buy NKK MRY106A rotary switch now and experience unmatched reliability and precision control with durable contacts and flexible wiring options.
Frequently Asked Questions
Where can I buy NKK Switches MRY106A?
You can click on the BUY or RFQ button to purchase MRY106A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MRY106A?
You can download the MRY106A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MRY106A?
NKK Switches
