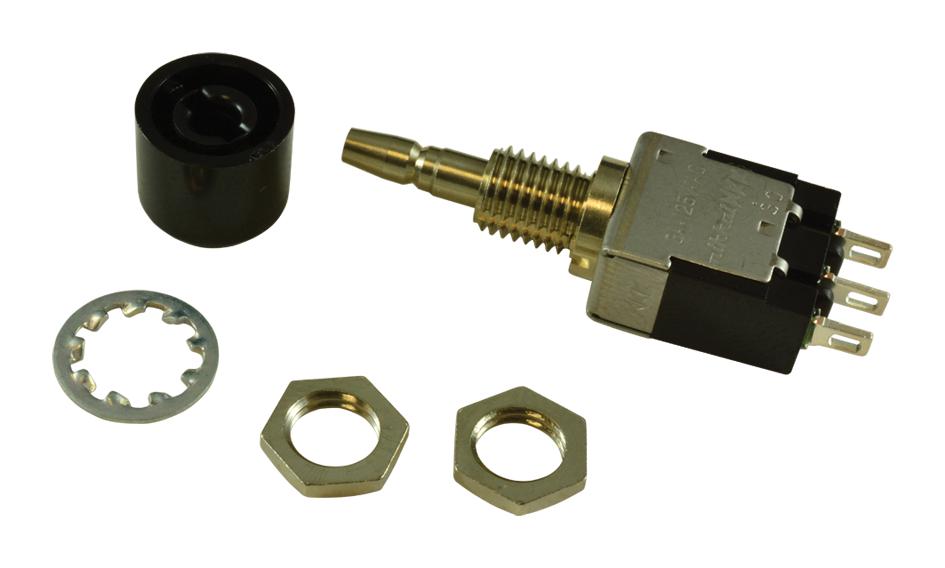

NKK Switches EB2065CA Subminiature Toggle Switch
Process Sealed Subminiature Antistatic Toggle Switches are space-saving, highly reliable devices designed for low-voltage, logic-level circuits. Featuring a totally sealed body, these toggles prevent contact contamination and facilitate efficient soldering and cleaning. They incorporate an award-winning STC contact mechanism for smooth actuation and stability, with options including locking levers and panel seal mounting compatible with IP65 standards. Crafted with nickel-plated brass, polyamide, and phosphor bronze, these switches operate within -30°C to +85°C, ensuring durability and consistent performance in various environmental conditions.
NKK Switches EB2065CA Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC min for 1 min
- Mechanical Life: 100,000 ops, 50,000 ops for some circuits
- Nominal Operating Force: Toggle A, A1, E, K with long paddle: 1.47N (momentary); 1.18N (maintained); others vary
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Nickel-plated brass, carbon blended polyamide, phosphor bronze, zinc alloy, nitrile rubber
- Operating Temperature Range: -30°C to +85°C
- Humidity & Vibration: 90-95% humidity for 96 hours @ 40°C; 10-55Hz vibration testing
- Shock Resistance: 50G (490 m/s²) acceleration
- Soldering & Cleaning: Recommended wave soldering (Profile A), manual soldering, automated cleaning
- Standards & Certifications: UL9AV-0 available, designed for low-voltage, logic-level use with no hazardous energy, untested for UL recognition or CSA
Buy the NKK Series B Process Sealed Subminiature Antistatic Toggle: EB2065CA
Buy your NKK Series B EB2065CA toggle switch online today and enjoy space-saving, sealed design, antistatic superstructure, and reliable operation in low-voltage circuits. Perfect for logic-level applications, these switches offer a totally sealed body that prevents contact contamination, enabling easy soldering and cleaning. Crafted with durable materials like nickel-plated brass and polyamide, they withstand wide temperature ranges from -30°C to +85°C. Ideal for use in industrial, automation, and control systems, order now for durable, high-performance switching solutions.
Order your NKK Series B EB2065CA toggle switch today and enhance your low-voltage, logic-level applications with dependable sealed performance.
