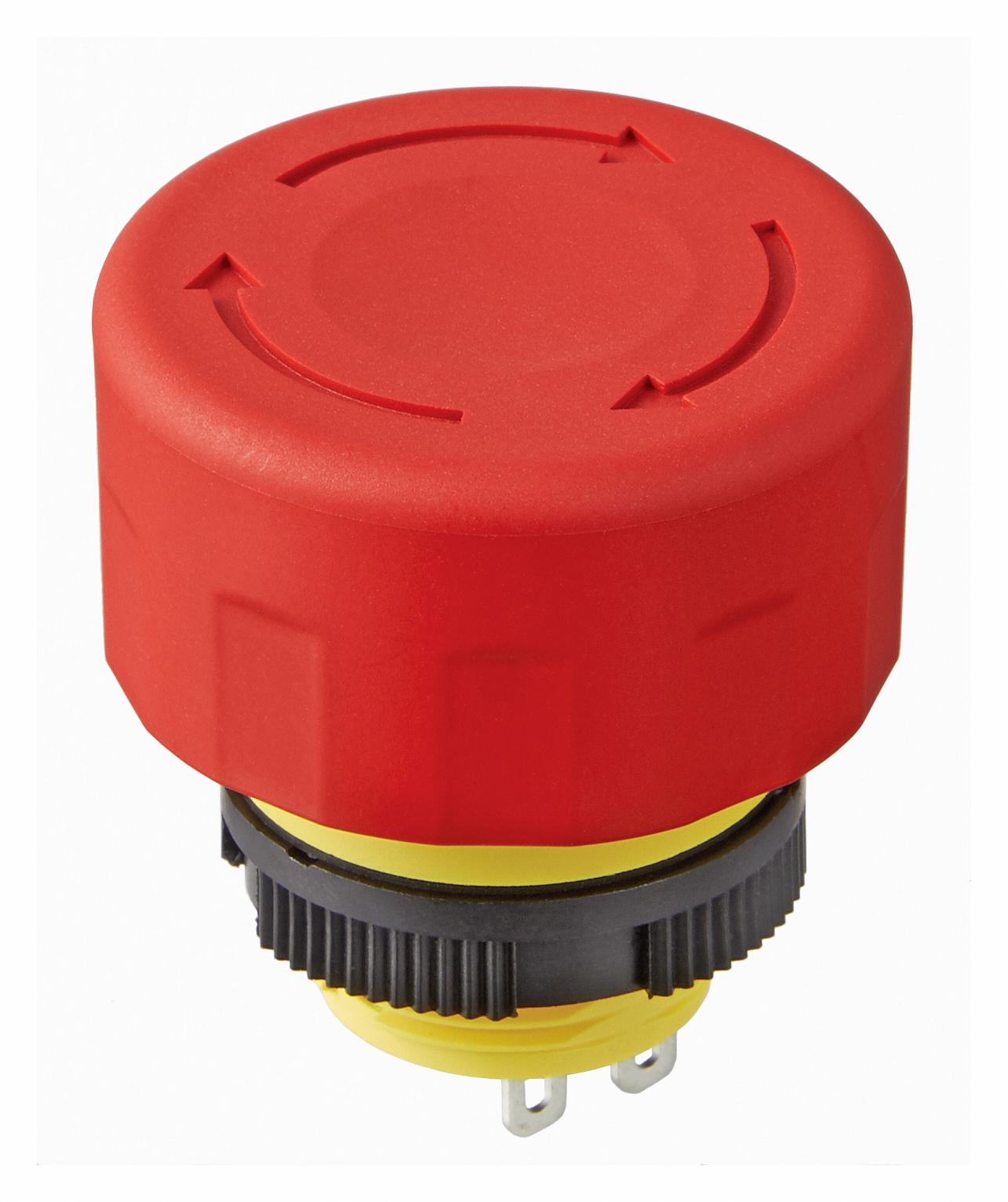

NKK Switches FF0126BBCAEA01 Emergency Stop Switch
The FFO1 Series emergency stop switches feature a low profile housing with the shortest behind-panel depth of 13.6mm, making them ideal for high-density panel layouts in automation and machinery. They are IP65 rated for dust-tight and water jet resistance, with actuator sizes of 25mm and 30mm. These switches offer reliable contact materials with gold-over-silver plating, and their unique latch mechanism ensures safety and durability. Suitable for factory automation, fluid dispensers, and laser measurement devices, they meet IEC and other international standards, ensuring safe and compliant operation.
NKK Switches FF0126BBCAEA01 Emergency Stop Switch Specifications:
- Electrical Capacity: 0.5A @ 24V DC, Resistive Load
- Rated Insulation Voltage: 36V DC
- Impulse Withstand Voltage: 2.5kV
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Mechanical Life: 100,000 operations minimum
- Operating Force: Push to lock 10.8N, Pull to reset 8.5N, Turn to reset 0.13N-m
- Mounting Torque: 785mN-m (recommended)
- Panel Thickness: 0.8mm to 4.5mm (16 to 177 mils)
- Actuator Sizes: 25mm and 30mm diameter
- Operating Temperature Range: -45°C to +80°C
- Sealing: IP65, dust tight and water jet resistant
- Standards & Certifications: IEC 60529, EN 60947-5-1, EN 60947-5-5
Buy the Buy NKK Switches Emergency Stop Switch Part Number FF0126BBCAEA01 Online
Secure your safety systems with NKK Switches emergency stop switches. Featuring IP65 rated sealing, compact design, and robust materials, these switches ensure reliable operation in factory automation, fluid dispensing, and laser measurement equipment. Easy to install with recommended torque and panel cutout dimensions, they comply with international safety standards. Enhance your machinery’s safety and efficiency by purchasing these high-quality emergency stop switches online today. They are built to withstand vibration, shock, and harsh environments for long-term use.
Get NKK Switches FF0126BBCAEA01 today—designed for high safety and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches FF0126BBCAEA01?
You can click on the BUY or RFQ button to purchase FF0126BBCAEA01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FF0126BBCAEA01?
You can download the FF0126BBCAEA01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FF0126BBCAEA01?
NKK Switches
