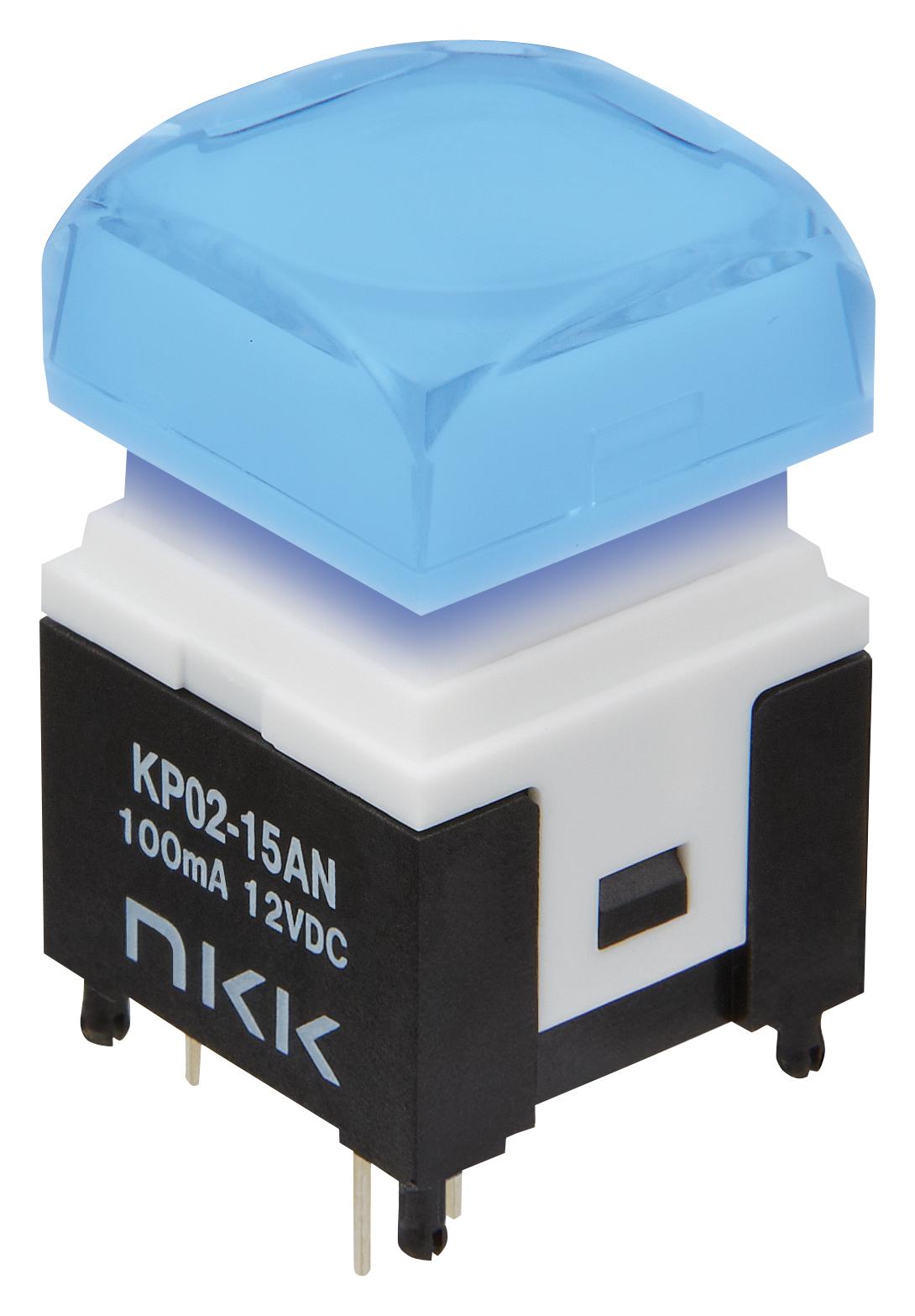

NKK Switches KP0215ANBKG036G2SJB Illuminated Pushbutton
The KP Series illuminated pushbutton offers a compact, reliable control solution with a shorter stroke of 3.5mm, high durability of 5 million operations, and super bright white, yellow, or blue LEDs. Its flat, sculptured, and home key square caps provide design flexibility for various control panels. Constructed from UL94V-0 rated materials with gold-plated contacts, it ensures long-lasting performance. Suitable for low-voltage, low-current logic circuits, the switch's dimensions include a height of 23mm from PCB to cap, with rated electrical capacity of 100mA at 12V DC and a maximum current of 30mA for LEDs.
NKK Switches KP0215ANBKG036G2SJB Illuminated Pushbutton Specifications:
- Electrical Capacity: 100mA max @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms min @ 250V DC
- Dielectric Strength: 1,000V AC between contacts, 1 minute; 1,500V AC contact-to-case, 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.6N
- Travel: Pretravel 0.091 inches (2.3mm), Overtravel 0.047 inches (1.2mm), Total Travel 0.138 inches (3.5mm)
- Materials: Plunger/upper housing - Glass fiber reinforced PBT UL94V-0; Movable contact - Gold over copper alloy; Lower housing - Polyacetal; Stationary contacts - Stainless steel with gold plating; Switch terminals - Brass with fin plating
- Operating Temperature Range: -25°C to +50°C
- Humidity Resistance: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm, in 3 directions for 2 hours
- Shock: 51G acceleration in 6 directions
- Installation: Cap installation force 1.6N, PCB soldering temperature preheat 110°C, peak 270°C, manual soldering 390°C
- Flammability: UL94V-0 rated housing
- LED Specifications: Bright white, yellow, or blue, forward voltage 3.2V, forward current 20mA, reverse voltage 5V, ambient temperature -25°C to +50°C
Buy the NKK Series KP Illuminated Pushbutton: KP0215ANBKG036G2SJB
Enhance your control panels with the reliable NKK Series KP illuminated pushbutton featuring super bright LED indicators in white, yellow, or blue. Its compact design measures just 23mm from PCB to cap, offering a shorter 3.5mm stroke for quick actuation. Rated for 100mA at 12V DC, it boasts a long operational life of 5 million cycles. Constructed from UL94V-0 flame-retardant materials with gold-plated contacts, this switch ensures durability, high performance, and flexibility—perfect for low-voltage, logic-level circuits in industrial and automation applications.
Order your NKK Series KP illuminated pushbutton with super bright LEDs today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches KP0215ANBKG036G2SJB?
You can click on the BUY or RFQ button to purchase KP0215ANBKG036G2SJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0215ANBKG036G2SJB?
You can download the KP0215ANBKG036G2SJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0215ANBKG036G2SJB?
NKK Switches
