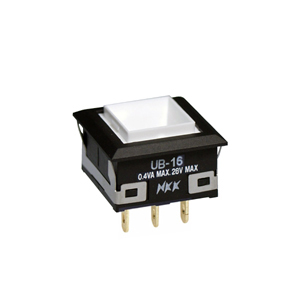

NKK Switches UB16KKG01N Illuminated Pushbutton Switch
A low-profile illuminated pushbutton switch compatible with PCB mounting and soldering. Designed for easy installation and reliable operation in various electronic applications.
NKK Switches UB16KKG01N Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: SPDT (Single Pole Double Throw)
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts & case for 1 minute
- Electrical Capacity: 5A @ 125/250V AC or 5A @ 30V DC
- Electrical Life: 200,000 operations minimum for resistive load, 100,000 for resistive, Silver with 3A @ 125V AC
- Mechanical Life: 1,000,000 operations minimum
- Nominal Operating Force: 1.9N for single pole, square and rectangular
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Ambient Temperature Range: -20°C to +70°C
- Operating Temperature Range: -25°C to +50°C for Illuminated
- Humidity & Shock: 90-95% RH for 96 hours @ 40°C, 50G acceleration in 6 directions
- Soldering: Wave Soldering (Profile A), Manual Soldering (Profile A), hand clean with alcohol-based solution
- Certifications: UL recognized, CSA certified (order specific), recognized at 5A @ 125/250V AC
Buy the NKK UB16KKG01N – Reliable Illuminated Switch for Industrial Applications
Purchase the NKK illuminated pushbutton switch online today and ensure your electronic projects benefit from high durability and precise operation. Easy to install with PCB mounting, these switches offer reliable connectivity and long-lasting performance. Perfect for control panels, machinery, and automation systems, the switch’s robust construction meets international safety standards. Enjoy quick delivery and expert support by ordering online. Upgrade your electronics with a trusted switch that guarantees consistent quality and superior functionality.
Buy NKK UB16KKG01N now and experience unmatched reliability and performance in electronic switching needs.
Frequently Asked Questions
Where can I buy NKK Switches UB16KKG01N?
You can click on the BUY or RFQ button to purchase UB16KKG01N from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16KKG01N?
You can download the UB16KKG01N datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16KKG01N?
NKK Switches
