NKK Switches FR01FC10H06XLS DIP Rotary Switch
This DIP switch rotary offers versatile configuration options for electronic circuits, featuring multiple positions with high reliability and easy manual adjustments. Built with durable materials, it ensures consistent performance across various applications. The switch includes a compact design with surface-mount and through-hole options, supporting both screwdriver and dial actuation. Suitable for low-voltage, low-current circuits, it provides crisp detent action with gold contacts for reliable electrical contact. The switch withstands environmental stresses such as humidity, vibration, and temperature extremes, ensuring longevity in industrial and electronic device applications.
NKK Switches FR01FC10H06XLS DIP Rotary Switch Specifications:
- Contact Resistance: 100 milliohms maximum; 30 milliohms maximum for contact point
- Insulation Resistance: 1,000 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Electrical Life: 10,000 detent operations minimum
- Nominal Operating Torque: 0.008Nm for nonshorting models
- Materials: Metal Shaft - Brass with nickel plating; Actuators - Polyamide or Polyacetal; Housing - Glass fiber reinforced polyamide
- Operating Temperature Range: -25°C to +85°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Processing: Wave soldering and manual soldering compatible, please refer to profile recommendations

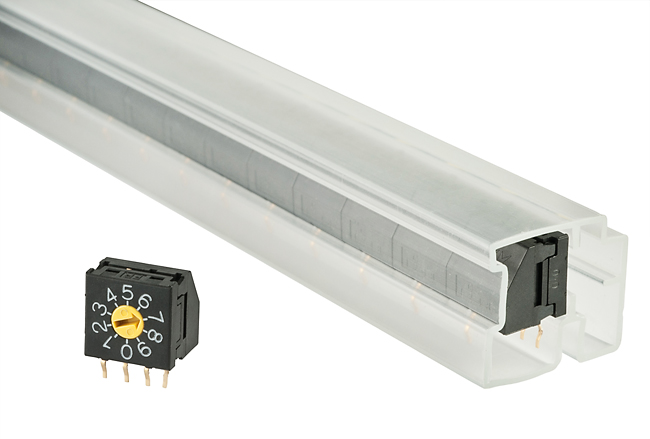

Buy the Buy NKK FRO1 Rotary Switch Compact DIP Control Part Number FR01FC10H06XLS
Purchase the NKK FRO1 rotary switch online today for dependable performance in circuit configuration. Its compact design, gold contacts, and multiple positions ensure accurate settings and enduring reliability. Suitable for low-voltage applications, the switch withstands environmental stresses like humidity, vibration, and temperature fluctuations, making it ideal for industrial and electronic device use. Easy to install with surface-mount and through-hole options, it features crisp detent action and durable construction. Order now to enhance your electronic projects with a trusted rotary switch designed for precision and durability.
Get NKK FRO1 today—built for precision and long-lasting durability in electronic configurations and control systems.
Frequently Asked Questions
Where can I buy NKK Switches FR01FC10H06XLS?
You can click on the BUY or RFQ button to purchase FR01FC10H06XLS from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FR01FC10H06XLS?
You can download the FR01FC10H06XLS datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FR01FC10H06XLS?
NKK Switches
