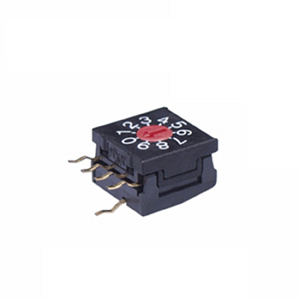

NKK Switches FR01FR10HS 10mm DIP Rotary Switch
This 10mm DIP rotary switch offers multiple positions for precise manual configuration in electronic circuits. Designed for low-voltage, low-current applications, it features durable contact materials, a detent mechanism for positive action, and secure crimped terminals. Constructed with high-quality plastic and metal shafts, it supports wave and manual soldering. Ideal for high-density circuit board mounting, the switch includes various actuators like screwdriver, dial, and metal shaft options, with clear legends and color-coded actuators for easy code setting and reliable operation in demanding electronic environments.
NKK Switches FR01FR10HS 10mm DIP Rotary Switch Specifications:
- Switching Rating: 100mA @ 5V DC, 100mA @ 50V DC
- Contact Resistance: 100 milliohms max, 30 milliohms max for contact points
- Insulation Resistance: 1,000 megohms min @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 10,000 detent operations minimum
- Electrical Life: 10,000 detent operations minimum
- Nominal Operating Torque: Metal Shaft 0.009Nm for decimal devices, 0.011Nm for hexadecimal devices
- Operating Temperature Range: -13°F through +185°F (approx. 25°C to 85°C)
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Materials & Finishes: Plastic (UL94V-0), Brass with nickel plating, Polyamide, Copper alloy, Phosphor bronze, Gold plating
- Soldering: Wave and manual soldering compatible, custom process sealed version available
Buy the NKK Series FRO1 10mm DIP Rotaries: FR01FR10HS
Upgrade your electronic circuits with the NKK Series FRO1 10mm DIP Rotary Switch, featuring multiple positions, secure contact reliability, and easy mounting. Its high-quality contact materials and detent mechanism ensure accurate, crisp operation, making it ideal for high-density PCB applications. Equipped with various actuators including screwdriver, dial, and metal shaft options, this switch supports wave and manual soldering for flexible manufacturing. Ensure reliable, durable circuit configuration with this compact, versatile rotary switch designed for demanding electronic environments.
Buy NKK Series FRO1 10mm DIP Rotaries FR01FR10HS now and experience unmatched reliability and performance in your electronic switching applications.
Frequently Asked Questions
Where can I buy NKK Switches FR01FR10HS?
You can click on the BUY or RFQ button to purchase FR01FR10HS from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FR01FR10HS?
You can download the FR01FR10HS datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FR01FR10HS?
NKK Switches
