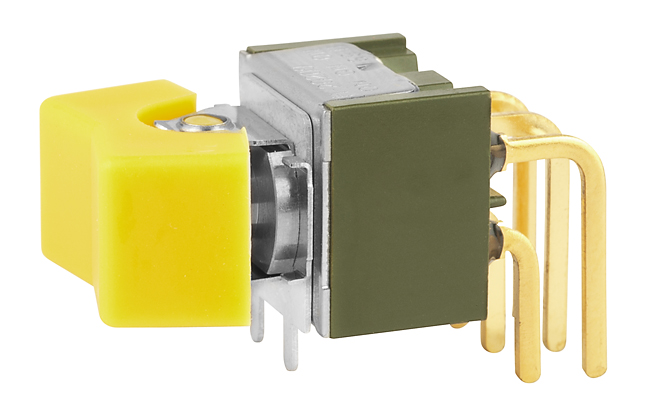

NKK Switches M2027TXG30DE Miniature Rocker Switch
This miniature rocker switch offers reliable performance with multiple circuit options, suitable for compact electronic devices. It features high insulation barriers, epoxy sealed terminals for contamination resistance, and ratings up to 6A at 125V AC. Its durable stainless steel actuator and UL 94V-0 flame rating case ensure safety and long life. Available with various terminal configurations, it supports different mounting methods, including flat face, snap-in, and PCB mount. Ideal for space-constrained applications needing dependable switching and environmental resilience.
NKK Switches M2027TXG30DE Miniature Rocker Switch Specifications:
- Electrical Capacity (Resistive Load): Power Level 6A @ 125V AC, Logic Level 0.4VA max @ 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum for silver; 50,000 for gold
- Angle of Throw: 25°
- Actuator Material: Stainless Steel
- Case Material: Diallyl phthalate resin (UL94V-0)
- Operating Temp Range: -30°C to +85°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Soldering: Wave and Manual soldering compatible (with actuator in OFF position)
- Standards & Certifications: UL Recognized, CSA Certified, Flammability UL94V-0
Buy the Buy NKK Switches Series M Miniature Rocker Part Number M2027TXG30DE Online
Enhance your electronic assemblies by purchasing the reliable NKK Switches Series M miniature rocker switch online. With durable construction, multiple mounting options, and high ratings up to 6A at 125V AC, it’s perfect for space-constrained applications demanding dependable performance. The switch features epoxy sealed terminals to prevent contamination, high insulation barriers for added safety, and stainless steel actuators for longevity. Available with various terminal configurations and mounting styles, it ensures seamless integration into your electronic or industrial systems. Order now for fast delivery and superior quality.
Order your NKK Switches Series M M2027TXG30DE miniature rocker switch today and ensure reliable switching for your compact electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches M2027TXG30DE?
You can click on the BUY or RFQ button to purchase M2027TXG30DE from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2027TXG30DE?
You can download the M2027TXG30DE datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2027TXG30DE?
NKK Switches
