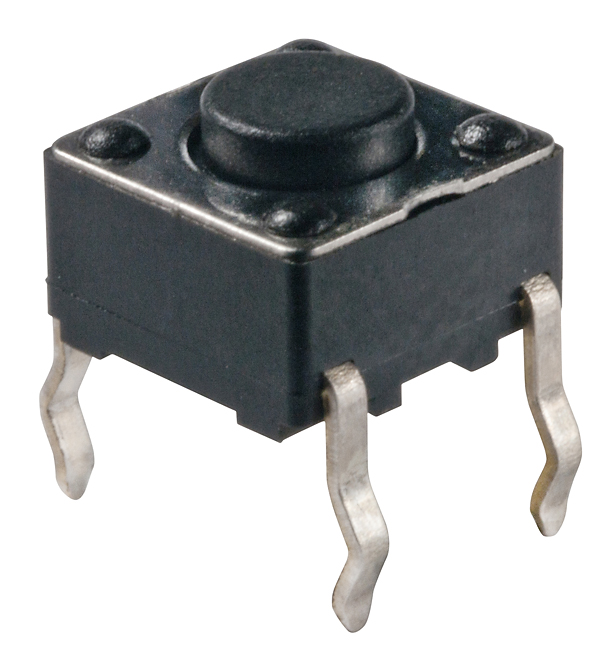

NKK Switches HP0215AFKP2 Tactile Push Button Switch
The 6.2 mm tactile push button switch is designed for through-hole mounting, providing reliable tactile feedback in electronic devices. With a compact square body measuring 6.2mm, it supports high durability with a mechanical life of 500,000 operations. Made from UL94V-0 flame-resistant glass fiber reinforced polyamide with stainless steel contacts, the switch offers low contact resistance of 100 milliohms and high insulation resistance. It features a nominal operating force of 1.60N, total travel of 0.2mm, and is suitable for low-voltage, low-current circuits, conforming to UL standards.
NKK Switches HP0215AFKP2 Tactile Push Button Switch Specifications:
- Dimensions: 6.2mm square body
- Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Material: Stainless steel
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 100V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 500,000 operations minimum
- Electrical Capacity: 3VA maximum @ 28V DC, 0.4VA maximum @ 28V AC/DC
- Nominal Operating Force: 1.60N
- Total Travel: 0.2mm
- Operating Temperature Range: -4°F through +158°F (-20°C to +70°C)
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 1.5mm peak-to-peak at 10-55Hz for 1 min in 3 directions
- Shock: 100G in 6 directions
- Soldering: Wave and manual soldering compatible with Profile A
- Standards & Certifications: UL94V-0 flammability rating
Buy the NKK 215AFKP2 – Reliable Tactile Switch for Industrial Applications
Purchase the NKK 215AFKP2 tactile switch online today and enhance your electronic assembly with a high-quality, reliable component. This switch features UL94V-0 flame-resistant body, stainless steel contacts, and supports up to 500,000 mechanical cycles. Its compact design allows easy integration into limited spaces, making it ideal for industrial, consumer electronics, and instrumentation applications. Order now and benefit from fast shipping, assured quality, and technical support to ensure your project’s success.
Buy NKK 215AFKP2 tactile switch now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches HP0215AFKP2?
You can click on the BUY or RFQ button to purchase HP0215AFKP2 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part HP0215AFKP2?
You can download the HP0215AFKP2 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of HP0215AFKP2?
NKK Switches
