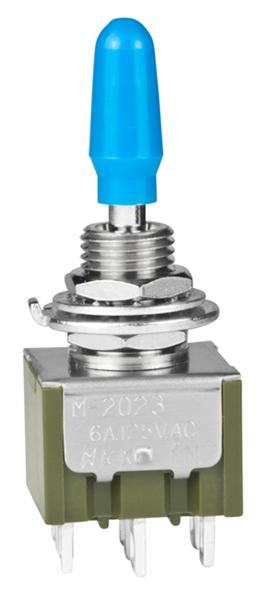

NKK Switches M2023SS1W01BG Miniature Toggle Switch
A miniature toggle switch featuring multi-function capabilities, suitable for various electronic applications and circuit controls.
NKK Switches M2023SS1W01BG Miniature Toggle Switch Specifications:
- Poles & Circuits: 2, 3, 4 poles & circuits available
- Electrical Ratings: 6A @ 125V AC & 3A @ 250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum for gold contacts
- Operating Temperature Range: -30°C to +85°C
- Vibration: 10~55Hz with peak-to-peak amplitude of 1.5mm for 2 hours
- Shock: 50G acceleration subjected in 6 directions
- Sealing: Splashproof options meet IP67 standards
Buy the NKK Series M Miniature Toggle: M2023SS1W01BG
Order the NKK Series M miniature toggle switch M2023SS1W01BG online today to enhance your electronic projects with its durable construction, reliable switching capabilities, and versatile circuit options. With high ratings for durability and shock resistance, this switch ensures long-lasting performance. Perfect for controlling circuits in industrial, automation, and consumer electronics, it combines robust construction with easy installation. Purchase now to enjoy fast shipping and premium quality in every switch, elevating your system’s reliability.
Buy NKK Series M miniature toggle switch M2023SS1W01BG now and experience unmatched reliability and performance for electronic circuit control.
Frequently Asked Questions
Where can I buy NKK Switches M2023SS1W01BG?
You can click on the BUY or RFQ button to purchase M2023SS1W01BG from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2023SS1W01BG?
You can download the M2023SS1W01BG datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2023SS1W01BG?
NKK Switches
