NKK Switches UB16KKW015CAB Low Profile Illuminated Pushbutton
The low-profile illuminated pushbutton switch is ideal for compact panel mount applications, featuring quick actuation with audible feedback and a long electrical life. It supports solder and PC mounting with durable materials including polycarbonate housing and stainless steel components. The switch offers bright LED illumination in multiple colors such as red, green, amber, and white, with full face and spot options. It can handle 5A at 125/250V AC, with high insulation resistance and dielectric strength, making it reliable for industrial and automation applications. Its small size allows placement in tight spaces, and it complies with UL and CSA standards for safety and quality.
NKK Switches UB16KKW015CAB Low Profile Illuminated Pushbutton Specifications:
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC for 1 min between contacts; 1,500V between contacts & case
- Mechanical Life: 1,000,000 operations min (momentary), 200,000 (alternate)
- Electrical Life: 100,000 operations min (silver), 200,000 (gold)
- Nominal Operating Force: Single Pole 1.9N; Double Pole 2.55N
- Travel: Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm), Total 0.091” (2.3mm)
- Housing Material: UL94V-0 polycarbonate, Bezel: UL94V-0 polycarbonate, Base: GFR Polyamide
- Operating Temperature Range: -20°C to +70°C (-4°F to 158°F)
- Humidity Resistance: 95% for 96 hours @ 40°C
- Mechanical Shock Resistance: 50G acceleration
- Soldering: Wave and manual soldering profiles available
- Standards: UL recognized, CSA certified (with markings)

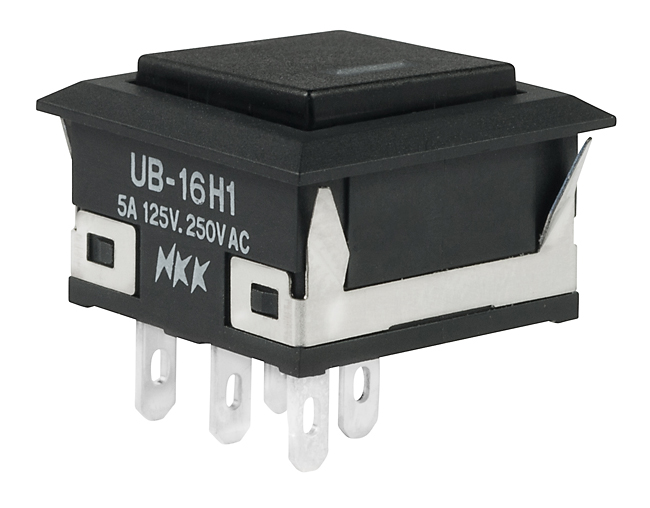

Buy the NKK Series UB Low Profile Pushbuttons: UB16KKW015CAB
Equip your control systems with the robust and space-efficient Low Profile Illuminated Pushbutton. Featuring bright LEDs in multiple color options, durable polycarbonate construction, and proven UL and CSA compliance, this switch ensures reliable operation in tight spaces. Its compact size, high electrical capacity, and long mechanical and electrical lifespan make it perfect for industrial automation, manufacturing, and control panel applications. Easy to install with solder or PCB mounting, order online now to enhance your project’s quality and performance.
Order your NKK Series UB16KKW015CAB compact illuminated pushbutton today and give your control panels reliable, space-saving operation.
Frequently Asked Questions
Where can I buy NKK Switches UB16KKW015CAB?
You can click on the BUY or RFQ button to purchase UB16KKW015CAB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16KKW015CAB?
You can download the UB16KKW015CAB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16KKW015CAB?
NKK Switches
