NKK Switches ISENGKIT5SC LCD36x24 Display Kit
The IS-ENG-KIT-5-SC from NKK Switches is a comprehensive SmartSwitch engineering development kit designed for testing and integrating LCD36x24 displays into various applications. It features two LCD displays, one standard and one compact RGB, controlled by the S0205 controller with on-board 1MB NOR flash memory for images and data storage. The kit includes schematics, firmware, source code, USB serial communication at 115.2K baud, and seven I/O pins for custom control. Powered via USB or 5V supply, it supports stand-alone and real-time operation, ideal for engineering and experimentation.
NKK Switches ISENGKIT5SC LCD36x24 Display Kit Specifications:
- Control: S0205 controller controlling two LCD36x24 displays
- Displays: One standard RGB display and one compact RGB display
- Memory: 1MB NOR flash for images and data storage
- Communication: USB serial at 115.2Kbaud
- Power: USB or 5V power supply, maximum 150mA
- I/O pins: Seven auxiliary 7-pin microcontroller I/O pins for custom applications
- Operation: Supports stand-alone and real-time operation
- Firmware: Preprogrammed with firmware, user customizable via firmware modifications
- Programming Interface: Compatible with PICKIT3 debugger and adaptor
- Physical Dimensions: Kit includes schematics, firmware, and source code for development

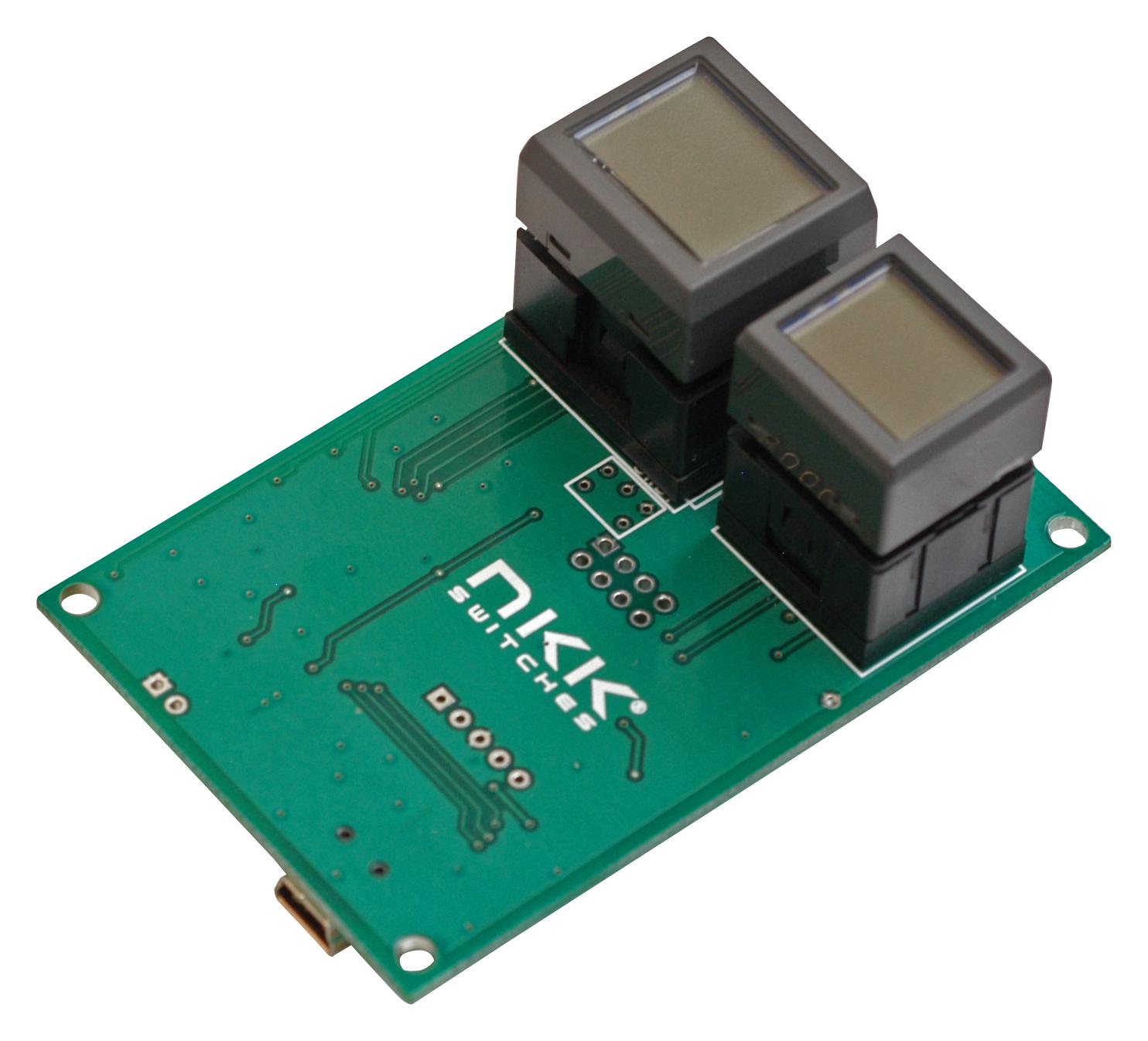

Buy the NKK Switches Series LCD36x24 Controller: ISENGKIT5SC
Enhance your project with the NKK Switches LCD36x24 display development kit, featuring two high-quality LCD displays, onboard memory for images, and USB communication. It is ideal for testing, development, and integration into various applications, offering programmability via firmware and support for real-time control. Powered through USB or external 5V, with seven auxiliary I/O pins for custom functions, this kit is perfect for engineers seeking flexible and reliable display solutions for their innovations.
Buy NKK Switches ISENGKIT5SC now and experience unmatched reliability and performance in display testing and integration.
Frequently Asked Questions
Where can I buy NKK Switches ISENGKIT5SC?
You can click on the BUY or RFQ button to purchase ISENGKIT5SC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part ISENGKIT5SC?
You can download the ISENGKIT5SC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of ISENGKIT5SC?
NKK Switches
