NKK Switches ISENGKIT6CH SmartSwitch Kit

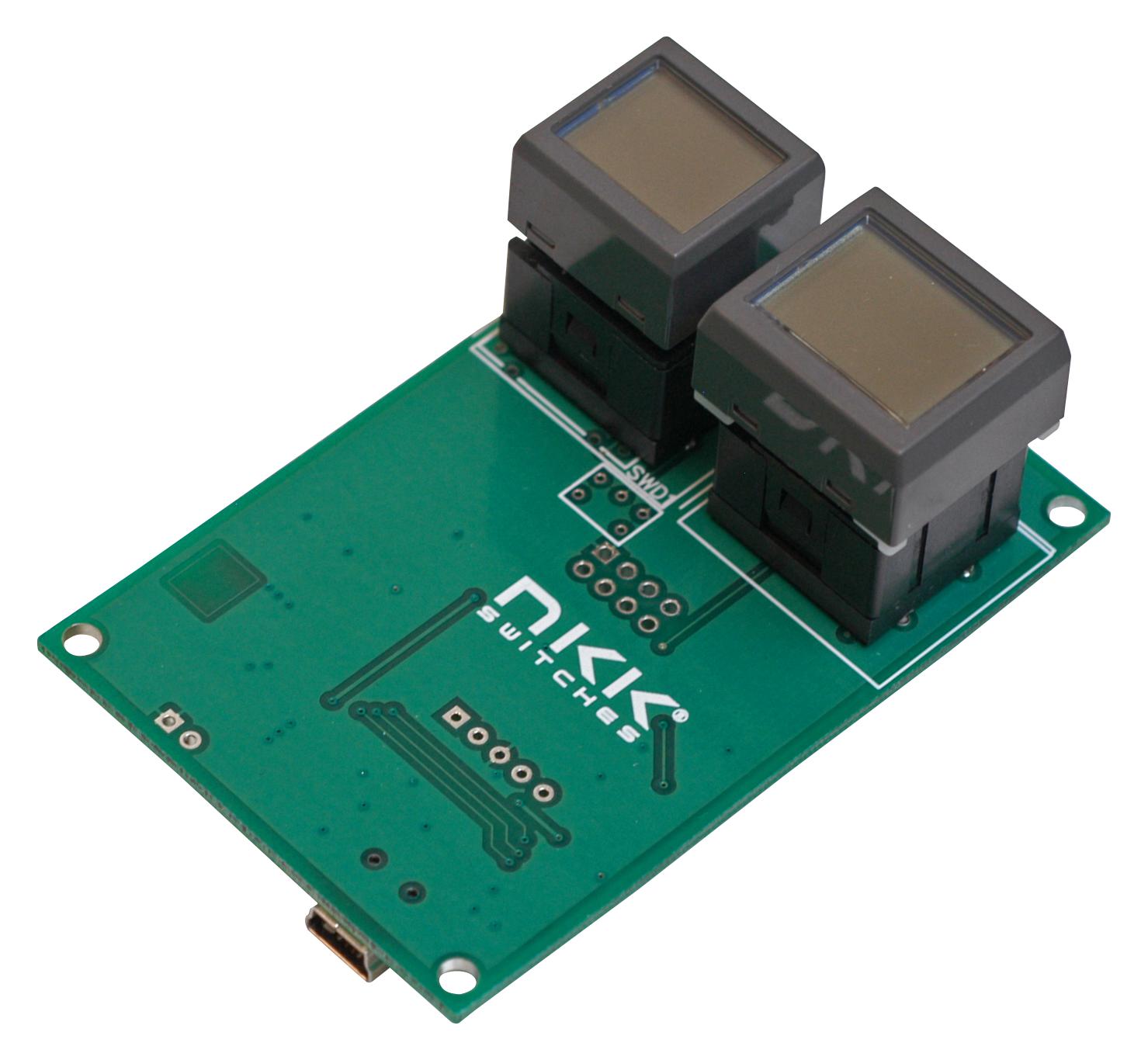

The IS-ENG-KIT-6-CH from NKK Switches is an SmartSwitch® engineering development kit designed for testing and integrating SmartSwitch technology into various applications. It features two LCD 64x32 SmartSwitches—one from the IS15ESBFP4RGB series (compact) and the other from the IS15EBFP4RGB-09YN series (hybrid). The kit includes a S02G1 controller, schematics, firmware, software source codes in C language, on-board 1MB NOR flash memory for storing images and data, and USB connectivity at 115.2K baud. It offers an auxiliary port with seven I/O pins for additional control or sensing, supports both stand-alone and real-time operation, and can be pre-programmed for basic functions. The system can report switch actions, timers, and displayed image addresses via USB. Users can modify displayed images based on switch actuations or timers, and program the kit using a PICKIT3 debugger with a pin adaptor. Power options include USB or an external 5V power supply; the maximum current draw is 150mA at 5V DC.
NKK Switches ISENGKIT6CH SmartSwitch Kit Specifications:
- Display Size: 64x32 pixels
- Controller: S02G1
- Flash Memory: 1MB NOR flash
- Communication: USB 115.2K baud
- Power Supply: 4.5V to 5.5V (USB or external 5V)
- Maximum Current: 150mA at 5V DC
- I/O Pins: 7 auxiliary pins for control/sensing
- Operation Mode: Stand-alone or real-time
- Programming: Compatible with PICKIT3 debugger and pin adaptor
- Included Components: Two LCD64x32 SmartSwitches, schematics, firmware, source codes, USB cable
- Switches: Compact and hybrid variants, RGB backlit with 64 colors
