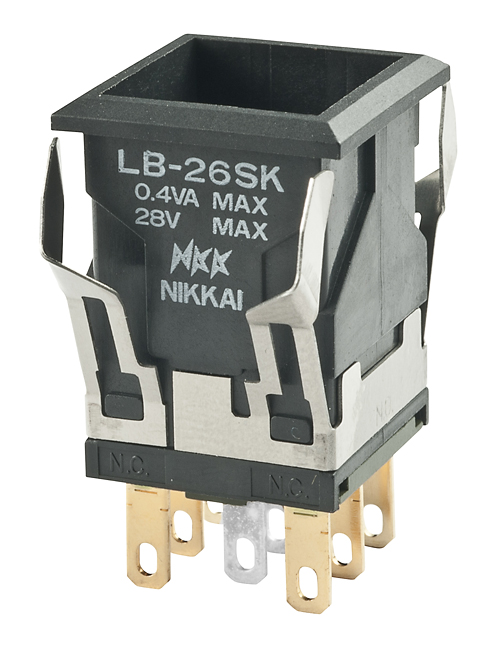

NKK Switches LB26SKG01 Illuminated Pushbutton Switch
The LB26SKG01 is a standard size illuminated pushbutton switch designed for panel mounting with snap-in installation. It features bright LED illumination with a diffusing lens for full surface visibility, and offers multiple color and lens options. The switch operates with a rated 3A at 125V/250V AC, with sealed housing to prevent contamination. It has tactile tactile feedback, long electrical life, and durable construction with polycarbonate caps and polyamide bases. Suitable for industrial, automation, and control applications requiring reliable, bright indicator switches.
NKK Switches LB26SKG01 Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Base Material: Polyamide
- Cap Material: Polycarbonate
- Illumination: Bright LED, diffusing lens
- Operating Voltage: 3A @ 125V/250V AC, 0.4VA @ 28V AC/DC
- Maximum Contact Resistance: 50 milliohms for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (maintained circuit)
- Electrical Life: 100,000 operations
- Operating Temperature Range: -25°C through +50°C (-13°F through +122°F)
- Pretravel/Overtravel: 0.059” (1.5mm), Total Travel: 0.118” (3.0mm)
- Panel Seal: Meets IP65 (IEC60529), with optional splash cover
- Installation Force: 3.92N downward
- Certifications: UL Recognized, CSA Certified (order with markings)
Buy the NKK Series LB Illuminated Pushbutton: LB26SKG01
Enhance your control system with the NKK Series LB26SKG01 illuminated pushbutton switch. Featuring snap-in mounting, long electrical life, sealed housing, and bright LED illumination, it ensures reliable operation in industrial environments. Easily installable and available in various lens and color options, this switch is ideal for panel controls, automation, and machinery. Trust NKK quality for durability and safety, order online now to improve your panel's visibility and operational reliability with this high-performance, cost-effective switch.
Order your NKK Series LB26SKG01 illuminated pushbutton switch today and equip your control panels with a durable, bright indicator for reliable operation.
Frequently Asked Questions
Where can I buy NKK Switches LB26SKG01?
You can click on the BUY or RFQ button to purchase LB26SKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26SKG01?
You can download the LB26SKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26SKG01?
NKK Switches
