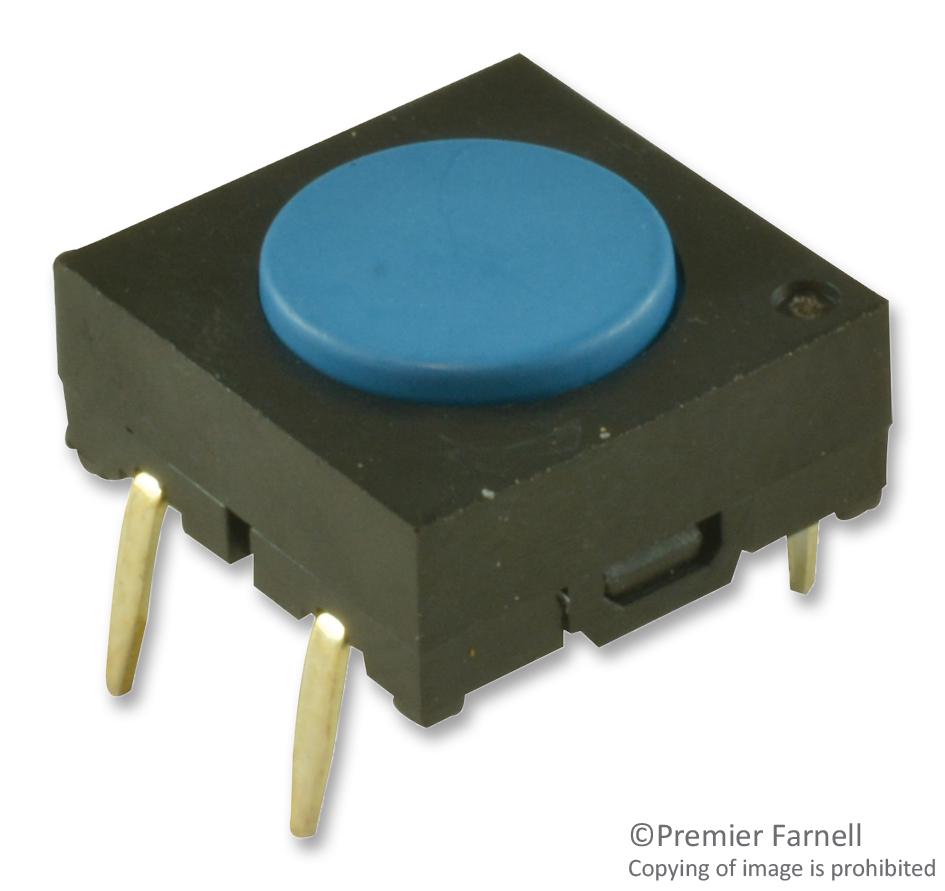

NKK Switches JB15FP Sealed Tactile Switch
The Low Profile Process Sealed Tactile Switches from the JB Series are designed for reliable, low-voltage, low-current applications with sealed construction for contact contamination prevention. These tactile switches feature high reliability with up to 5,000,000 operations, sealed rubber seals, and a choice of actuators for various design requirements. Constructed with UL94V-0 materials, they support automated soldering, cleaning, and right-angle mounting, making them ideal for compact, sealed electronic control panels, keyboards, and industrial devices requiring tactile feedback and long life.
NKK Switches JB15FP Sealed Tactile Switch Specifications:
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N for JB15, 2.65N for JB1SH
- Total Travel: 0.010" (.250mm) or 0.012" (.300mm)
- Materials & Finishes: Actuator- Glass fiber reinforced PBT, Base- Brass with silver plating
- Seal: Nitrile butadiene rubber
- Environmental Data: Operating temperature -55°C to +70°C, Humidity 90-95% RH for 240 hours, Vibration 10-55Hz, Shock 50G
- Mounting: Right angle or straight PC terminals, wave soldering compatible
- Standards & Certifications: UL94V-0 rated case & base, not UL or CSA certified
- Electrical Ratings: 50mA @ 24V DC for standard force, 125mA @ 24V DC for high force
Buy the NKK Series JB Low Profile Sealed Tactile: JB15FP
Purchase the NKK Series JB Low Profile Sealed Tactile Switches online today to ensure high reliability and durability for your electronic projects. Designed for low-voltage, low-current applications, these switches feature sealed rubber contact protection, long operational life up to 5 million cycles, and support automated soldering and cleaning processes. They are ideal for control panels, keyboards, and industrial automation systems where tactile feedback, sealed integrity, and long-term performance are essential. Order now and enhance your device’s reliability today.
Buy NKK Series JB15FP now and experience unmatched reliability and performance in sealed tactile switch applications.
Frequently Asked Questions
Where can I buy NKK Switches JB15FP?
You can click on the BUY or RFQ button to purchase JB15FP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JB15FP?
You can download the JB15FP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JB15FP?
NKK Switches
