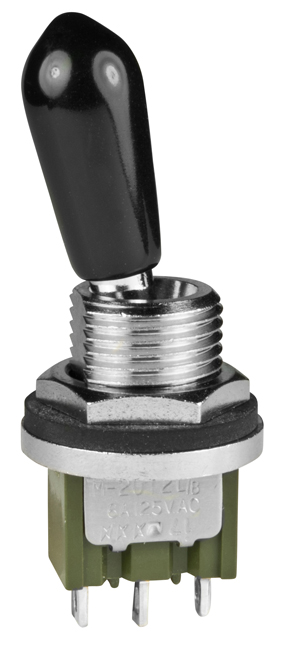

NKK Switches M2012B2B3W01VA Miniature Toggle Switch
Miniature toggle switch with multi-function capabilities, suitable for various electronic applications. Its compact design ensures reliable operation with high insulation resistance and dielectric strength. The switch has optional splashproof bushings, epoxy sealed terminals for contamination protection, and dual ratings for power and logic levels, making it ideal for precise control in industrial, automation, and electronic device applications. Certification includes UL and CSA standards, supporting versatile mounting and wiring options for enhanced performance and durability.
NKK Switches M2012B2B3W01VA Miniature Toggle Switch Specifications:
- Poles & Circuits: Single, Double, Triple, Four Pole configurations
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 minute
- Mechanical Life: Minimum 100,000 operations; 50,000 for flat, locking, splashproof devices
- Environmental Ratings: Operating Temp Range from -30°C to +85°C, humidity 90-95% at 40°C
- Vibration & Shock Resilience: 10-55Hz with 1.5mm amplitude, 50G acceleration
- Sealing: Splashproof bushing options IP67, with O-rings inside & outside for certain models
- Mounting & Installation: Hardware includes hex nuts, locking rings, suitable for panel mounting
- Soldering & Cleaning: Compatible with wave and manual soldering processes, hand cleaning with alcohol-based solutions
- Standards & Certifications: UL Recognized, CSA Certified, Flammability UL 94V-0
- Materials: Brass with chrome or nickel plating, polycarbonate or polyethylene actuators, epoxy sealed terminals
Buy the NKK Series M Miniature Toggle Switch: M2012B2B3W01VA
Secure your electronic or industrial project with the NKK Series M miniature toggle switch. Designed for precise control with epoxy sealed terminals, splashproof options, and dual ratings for power and logic. Easy to install with durable hardware and certified safety standards, this switch ensures longevity and dependable performance in demanding environments. Enhance your device’s reliability by purchasing online today—get fast shipping, trusted quality, and technical support, all tailored for professional applications needing robust toggle switches.
Buy NKK Series M M2012B2B3W01VA miniature toggle switch now and experience unmatched reliability and performance with versatile control features.
Frequently Asked Questions
Where can I buy NKK Switches M2012B2B3W01VA?
You can click on the BUY or RFQ button to purchase M2012B2B3W01VA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012B2B3W01VA?
You can download the M2012B2B3W01VA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012B2B3W01VA?
NKK Switches
