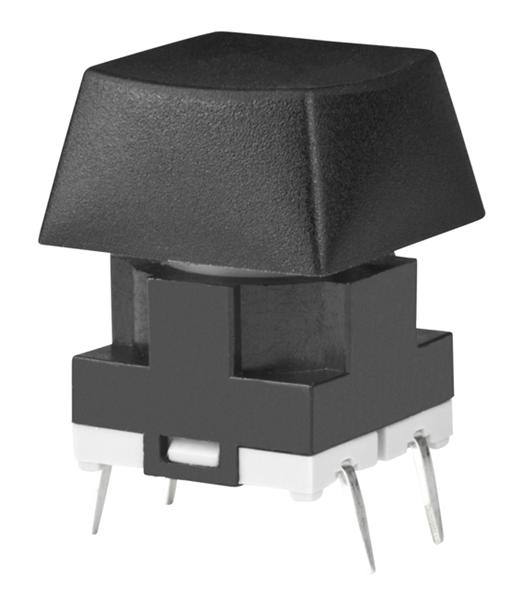

NKK Switches JB15HAP1A Tactile Pushbutton Switch
The JB Series low-profile tactile pushbutton switch offers reliable tactile feedback in space-constrained designs, ideal for PCB mounting in industrial control, automation, and electronic device applications. Its sealed construction prevents contact contamination and allows automated soldering and cleaning, ensuring long-lasting performance. Featuring a standard or high operating force option, it has a crisp, positive circuit transfer with up to 5 million operations. The switch's compact size, sealed IP67 rating, and compatibility with automated assembly make it suitable for diverse industrial and consumer electronic environments.
NKK Switches JB15HAP1A Tactile Pushbutton Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC (Standard), 125mA @ 24V DC (High)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N (standard), 2.65N (high)
- Total Travel: Not specified
- Actuator: Extended or flat, polycarbonate, black, white, red, yellow, green, blue, gray
- Case & Seal: Glass fiber reinforced PBT; Rubber seal (Nitrile)
- Materials & Finishes: Brass with silver plating, Phosphor bronze, stainless steel
- Temperature Range: 25°C to +70°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, 1.5mm amplitude, 1 min
- Shock: 50G acceleration in all directions
- Sealing: IP67 (IEC60529)
Buy the NKK JB Series - Reliable Tactile Switch for Industrial Applications
Enhance your electronic design with the NKK JB Series tactile pushbutton switch, featuring sealed IP67 protection, long mechanical and electrical life, and a compact form factor. Perfect for automation, control panels, and space-limited applications, it ensures reliable tactile feedback and easy automated assembly. With optional extended or flat actuators, this switch fits various design needs. Invest in quality and durability—order the NKK JB Series switch online for quick delivery and seamless integration into your projects.
Get NKK JB Series switch today—built for precision, durability, and reliable tactile feedback in industrial control systems.
Frequently Asked Questions
Where can I buy NKK Switches JB15HAP1A?
You can click on the BUY or RFQ button to purchase JB15HAP1A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JB15HAP1A?
You can download the JB15HAP1A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JB15HAP1A?
NKK Switches
