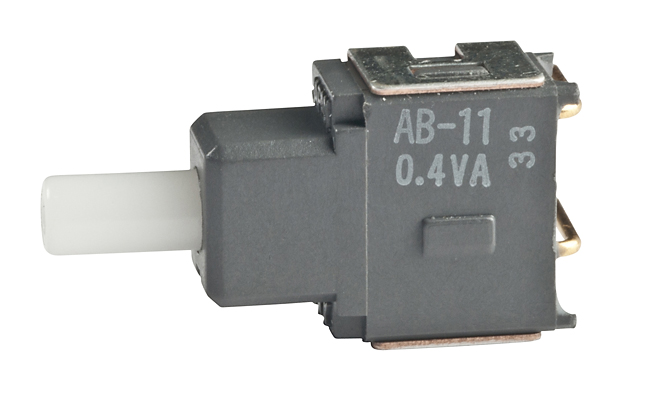

NKK Switches AB11BW Subminiature Pushbutton Switch
This subminiature pushbutton switch is designed for compact electronic applications requiring reliable, space-saving control. Featuring a sealed body construction, it prevents contact contamination and allows automated soldering and cleaning. Its award-winning STC contact mechanism provides smooth, positive detent actuation and increased contact stability for dependable logic-level operation. Available in various configurations including SPST, SPDT, right-angle, inline brackets, and with different plunger and terminal options, this switch ensures durability over 50,000 operations and is suitable for low-voltage, low-current circuits in space-constrained environments.
NKK Switches AB11BW Subminiature Pushbutton Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC min for 1 min
- Mechanical Life: 50,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 2.55N
- Contact Timing: Nonshorting (break-before-make)
- Pretravel: 0.028 inches (0.7mm)
- Overtravel: 0.016 inches (0.4mm)
- Total Travel: 0.043 inches (1.1mm)
- Plunger: Polyacetal, various lengths and diameters
- Case Housing: Glass fiber reinforced polyamide
- Support Bracket: Molded-in epoxy sealed or ultrasonically welded terminals
- Support for PCB: Use of support brackets recommended
- Environmental: Operating temperature -30°C to +85°C, 90-95% humidity, shock resistance 50G, vibration 10-55Hz
- Soldering: Wave and manual soldering recommended, automated cleaning approved
- Certifications: Not UL or CSA recognized
- Design: Low-voltage, logic-level application, contamination-resistant sealed body construction
- Standards & Certifications: None specified
Buy the NKK Series AB Process Sealed Subminiature Pushbuttons: AB11BW
Experience the reliability and space efficiency of the NKK Subminiature Pushbutton Switch. Designed for precise control in compact electronic devices, it features sealed construction to prevent contamination and supports automated soldering and cleaning processes. With a lifespan exceeding 50,000 operations, this low-voltage switch ensures dependable performance in tight spaces. Its award-winning contact mechanism offers smooth actuation and increased stability. Ideal for various control applications, it combines durability, compactness, and reliable contact performance, making it the perfect choice for modern electronics.
Get NKK AB11BW pushbutton today—built for precision, space-saving and long-lasting reliability in electronic control systems.
