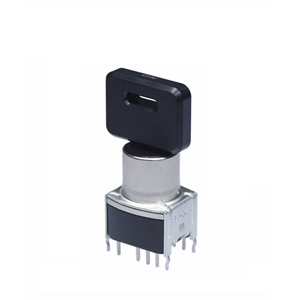

NKK Switches SK24DG13 security key lock
Miniature key lock designed for secure locking applications in electronic enclosures or equipment. Compact and reliable, suitable for various security needs. Features sealed body construction, disposable boot, molded-in terminals for contamination resistance, and key-removable positions for versatility. Made with durable brass alloy with bright nickel plating and ABS resin handle. Ideal for low-voltage, low-current circuits, especially in automation and control applications, offering high reliability, easy automation processing, and space-saving dimensions. Suitable for industry-standard PCB mounting and key-removable functions for security.
NKK Switches SK24DG13 security key lock Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Electrical Life: 10,000 cycles minimum
- Nominal Operating Torque: .026Nm (.234 Ibsin) for momentary action, .020Nm (.182 Ibsin) for maintained action
- Contact Timing: Break-before-make
- Angle of Throw: 90° for 2-position, 45° for 3-position
- Materials & Finishes: Boot—Polyvinyl chloride, Key—Polyacetal, Tumbler Barrel—Zinc alloy with nickel plating, Bushing—Steel with tin plating, Base—Polyamide with glass fiber reinforcement, Movable Contactor—Beryllium copper with gold plating, Stationary Contacts—Copper with gold plating, Terminals—Brass with tin plating
- Operating Temperature Range: ~25°C to +70°C
- Environmental Resistance: 90-95% humidity for 240 hours at 40°C, Vibration 10-55Hz, Shock 50G
- PCB Processing: Wave soldering (Profile B), manual soldering, automated cleaning with boot on switch
- Standards & Certifications: Not UL tested or CSA certified
Buy the NKK SK24DG13 – Reliable Keylock for Industrial Applications
Enhance your security with the NKK SK24DG13 miniature key lock, offering a compact design, durable construction, and high resistance to environmental factors. Perfect for locking electronic enclosures and low-voltage circuits, this product features key-removable positions for controlled access and molded-in terminals for easy automated manufacturing. Designed for industry-standard PCB mounting, it ensures reliable performance in industrial and automation settings. Order now online for fast delivery and secure your equipment effectively.
Buy NKK SK24DG13 now and experience unmatched reliability and security in electronic locking solutions.
Frequently Asked Questions
Where can I buy NKK Switches SK24DG13?
You can click on the BUY or RFQ button to purchase SK24DG13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part SK24DG13?
You can download the SK24DG13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of SK24DG13?
NKK Switches
