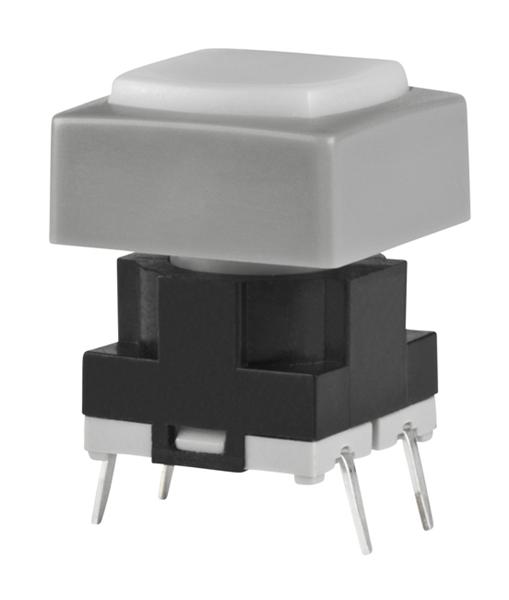

NKK Switches JB15HAP4BH Sealed Tactile Switch
Low-profile tactile push button switch suitable for PC applications, designed for easy installation and reliable operation. The switch features a sealed construction with rubber seals to prevent contact contamination, making it ideal for automated soldering and cleaning processes. It has a long mechanical life of up to 5,000,000 operations, with a nominal operating force of 1.76N for standard models or 2.65N for high-force types. Constructed from durable materials like glass fiber reinforced PBT and polyamide, it supports high reliability in industrial and electronic device applications. The switch's compact size and sealed design improve performance in low-voltage, logic-level circuits.
NKK Switches JB15HAP4BH Sealed Tactile Switch Specifications:
- Electrical Capacity: 50mA @ 24V DC maximum for Standard Operating Force models, 125mA @ 24V DC maximum for High Operating Force models
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N for JB15, 2.65N for JB1SH
- Total Travel: 0.010" (.250mm) or 0.012" (.300mm)
- Actuator: Glass fiber reinforced PBT, polyamide, polyacetal
- Base & case: Glass fiber reinforced PBT, UL94V-0
- Seal: Nitrile butadiene rubber
- Terminals: Brass with silver plating, molded-in for sealed structure
- Mounting: Through-hole with slanted terminals for secure mounting
- Operating Temperature Range: 25°C to +70°C
- Vibration & Shock: 10-55Hz, 50G acceleration
- Sealing: IP67 (IEC60529 standard)
- Soldering: Wave and manual soldering recommended
- Cleaning: Automated cleaning compatible with specified processes
Buy the Buy NKK Low Profile Process Sealed Tactile Switch Part Number JB15HAP4BH Online
Order the NKK JB15HAP4BH sealed tactile switch online today for high durability and reliable operation. Designed for PCB applications, it offers long life of up to 5 million cycles, with sealed construction preventing contamination. Its compact size makes it ideal for space-constrained environments. Supports automated soldering and cleaning, ensuring efficiency in manufacturing. Perfect for low-voltage circuit control, automation systems, and electronic devices demanding high reliability and sealed performance within industrial environments.
Get NKK JB15HAP4BH today—built for precision, long-lasting durability, and reliable performance in electronic and industrial applications.
