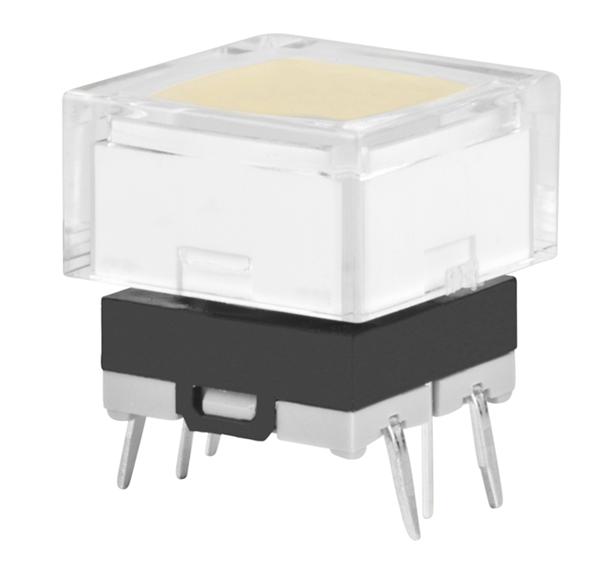

NKK Switches JB15HLPEJE Illuminated Tactile Switch
The illuminated low-profile tactile switch is designed for printed circuit boards, offering compact size, reliable tactile feedback, and bright LED illumination. Ideal for electronic devices requiring precise actuation, it features sealed construction for contamination resistance and automated soldering compatibility. Available in various LED colors such as red, green, and yellow, with options for short or extended actuators to suit different user preferences. With high electrical and mechanical durability, the switch supports up to 5 million operations, making it suitable for aerospace, automotive, and consumer electronics applications where space-saving and visible feedback are essential.
NKK Switches JB15HLPEJE Illuminated Tactile Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC maximum for Standard Operating Force models, 125mA @ 24V DC maximum for High Operating Force models
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N for JB15L, 2.65N for JB1SHL & JB15HB
- Total Travel: 0.010” (.254mm) for short actuator, 0.012” (.300mm) for extended actuator
- Actuator Material: Polyacetal (short), Glass fiber reinforced PBT (extended)
- Seal Material: Nitrile butadiene rubber
- Base Material: Glass fiber reinforced PBT (UL94V-0)
- Terminal Material: Brass with silver plating
- LED Colors: Red, Yellow, Green
- Operating Temperature Range: 25°C to +70°C
- Vibration Resistance: 10 ~ 55Hz, peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Soldering: Wave soldering; manual soldering with Profile A
- Standards & Certifications: UL9AV-0 rated case & base, not tested for UL recognition or CSA certification
