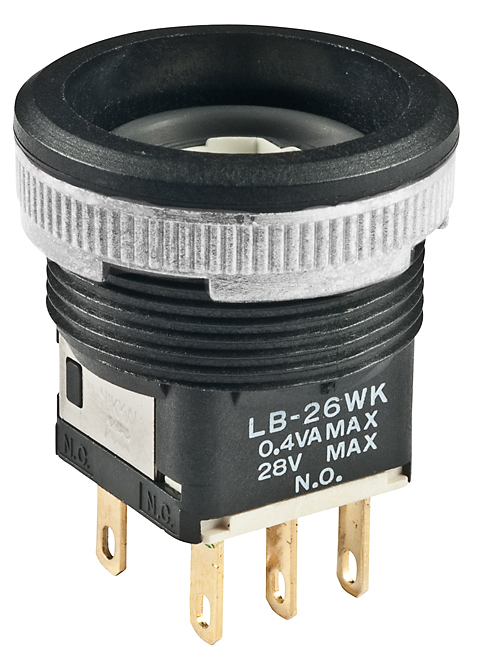

NKK Switches LB26WKG01 Waterproof Pushbutton Switch
The LB26WKG01 is a standard size illuminated waterproof push button switch designed for rugged environments and outdoor applications. It features advanced sealing to prevent water ingress, ensuring reliable performance even in harsh conditions. The switch includes bright LED illumination options, with various color and resistor configurations for visibility and control. Its sturdy construction, IP65 rating, and compatibility with panel mounting make it ideal for industrial automation, process control, and outdoor machinery. The switch also offers tactile feedback, long electrical life, and secure mounting versatility.
NKK Switches LB26WKG01 Waterproof Pushbutton Switch Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Material: Silver alloy or copper with gold plating
- Power Rating: 3A @ 125V AC or 250V AC, 0.4VA max @ 28V AC/DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC contact to case
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Vibration Resistance: 10 ~ 55Hz, peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G (490m/s²)
- Sealing: IP65 IEC60529 (NEMA 4 & 13 compatible)
- Mounting Torque: 1.96Nm (17.35 lbs.in)
- Switch Life: 1,000,000 operations (momentary), 200,000 (maintained)
- Terminal Type: Solder lug and .110” quick connect, epoxy sealed
Buy the NKK LB26WKG01 – Reliable Waterproof Pushbutton for Industrial Applications
Purchase the NKK waterproof pushbutton switch LB26WKG01 online today for your outdoor and rugged environment applications. Designed with IP65 sealing, it offers excellent water resistance, bright LED illumination, and reliable operation under harsh conditions. Its sturdy construction, secure panel mounting, and long electrical life make it ideal for industrial automation, outdoor control panels, and machinery. Enjoy the convenience of easy online ordering, fast delivery, and trusted quality for your critical control needs.
Get NKK LB26WKG01 today—built for waterproof reliability, rugged outdoor use, and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches LB26WKG01?
You can click on the BUY or RFQ button to purchase LB26WKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26WKG01?
You can download the LB26WKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26WKG01?
NKK Switches
