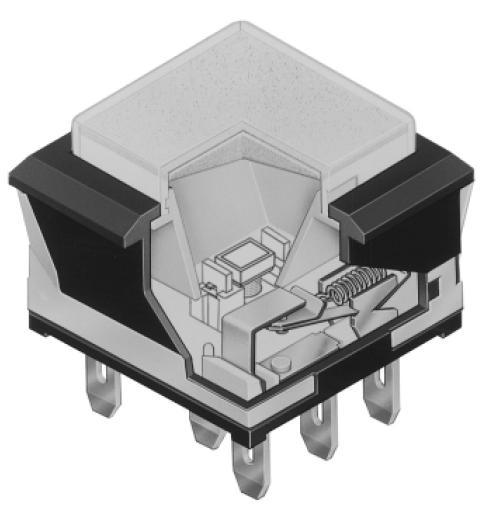

NKK Switches UB26KKW01NG Low Profile Pushbutton
A low-profile, illuminated pushbutton switch designed for PC and solder mounting. Suitable for control panels and electronic applications requiring a compact and visible switch.
NKK Switches UB26KKW01NG Low Profile Pushbutton Specifications:
- Poles & Circuits: Single & Double Pole, SPDT
- Mounting Types: PCB Mounting, Snap-in Mounting with Solder Lug
- Cap Colors & Types: Red, Amber, Green, White, Blue, Black, Clear
- LED Colors & Specifications: Bright & Super Bright LEDs, Forward Voltage V, 1.85-3.2V, Max Current 30mA, Reverse Voltage 5V
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: ≥200 MΩ @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V between contact and case
- Mechanical Life: Minimum 1,000,000 operations
- Operating Temperature Range: -25°C to +50°C (Illuminated), -20°C to +70°C (Non-illuminated)
- Dimensions: Various, typical size around 0.6-0.95 inches, panel thickness 0.039-0.126 inches
- Materials: Housing/Bezel and Base: UL94V-0 rated plastics, Contacts: Copper alloy, Plating: Silver or gold
Buy the Buy NKK Series UB Low Profile Pushbuttons Part Number UB26KKW01NG Online
Enhance your electronic or control panel projects with the NKK low-profile illuminated pushbutton switch. Featuring a compact design, LED illumination for visibility, and robust construction, this switch offers reliable performance for demanding environments. Suitable for PCB and solder mounting, it ensures easy installation and long-lasting operation. With a rated capacity of 5A at 125/250V AC and contact resistance of just 50 milliohms for silver contacts, it’s the ideal choice for professional automation and control systems. Order online now to secure fast delivery!
Order your NKK Series UB26KKW01NG low profile illuminated pushbutton today and enhance your control panels with dependable and compact operation.
Frequently Asked Questions
Where can I buy NKK Switches UB26KKW01NG?
You can click on the BUY or RFQ button to purchase UB26KKW01NG from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26KKW01NG?
You can download the UB26KKW01NG datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26KKW01NG?
NKK Switches
