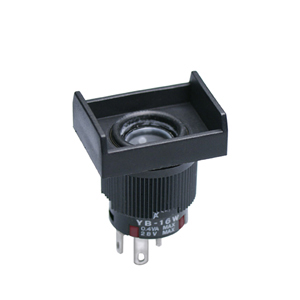

NKK Switches YB16WRKG01 Short Body Pushbutton Switch
A short, illuminated pushbutton switch designed for panel mounting, featuring a sealed body for durability and protection against environmental factors. It includes various LED options for illumination, keylocks, tactile feedback, and compatibility with a range of mounting styles such as bushing and snap-in. Ideal for industrial control panels, machinery, and automation systems, this switch offers reliable operation with high ratings for electrical capacity and environmental protection. Its compact design and high durability make it suitable for harsh environments and demanding applications.
NKK Switches YB16WRKG01 Short Body Pushbutton Switch Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC max.
- Contact Resistance: 50 milliohms maximum for silver contacts; 100 milliohms maximum for gold contacts
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Nominal Operating Force: 1.47N for nonsealed single pole, 2.75N for nonsealed double pole
- Travel: Pretravel 0.059 inch (1.5mm), Total Travel 0.118 inch (3.0mm)
- Housing/Bezel: Glass fiber reinforced polyamide (UL94V-0)
- Base: Polyamide with panel seal
- Lamp Terminal & Switch Terminal: Phosphor bronze or silver alloy with plating
- Operating Temperature Range: -25°C through +50°C (illuminated), -25°C through +70°C (nonilluminated)
- Environmental Resistance: IP65 standard, dust, oil, splashproof, humidity up to 95% for 96 hours
- Mounting Torque: 0.785Nm (6.95 Ibsin)
- Mounting Types: Bushing and snap-in mounting with panel thickness compatibility from 0.020” to 0.150”
- Standards & Certifications: UL, cUL, CSA recognized, recognized only when ordered with marking on switch.
Buy the NKK Short Body Pushbutton – Reliable Industrial Switch for Control Panels
Enhance your control system with our high-quality short body pushbutton switch, featuring seal protection, multiple illumination options, and durable construction designed for harsh environments. Easy to install with a compact profile, it offers reliable operation over millions of cycles. Ideal for industrial panels, machinery, and automation systems, this switch ensures safety, dependability, and long-term performance. Purchase online today to improve your control interface with seamless functionality and advanced features.
Buy NKK Short Body Pushbutton now and experience unmatched reliability, long life, and ease of installation for your industrial automation needs.
Frequently Asked Questions
Where can I buy NKK Switches YB16WRKG01?
You can click on the BUY or RFQ button to purchase YB16WRKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB16WRKG01?
You can download the YB16WRKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB16WRKG01?
NKK Switches
