NKK Switches JB15LPEBH illuminated tactile switch
The JB15LPEBH is a low-profile illuminated tactile switch ideal for PCB mounting in electronic devices. It features a sealed construction with bright LED illumination in red, green, or yellow for enhanced visibility. The switch provides crisp tactile feedback, has a long mechanical life of up to 5,000,000 operations, and offers a reliable, sealed, dust-proof design. Its compact size, combined with high operating force options and sealed rubber seal, ensures durability and optimal performance in low-current, low-voltage logic circuits, making it suitable for a wide range of control panel applications.
NKK Switches JB15LPEBH illuminated tactile switch Specifications:
- Electrical Capacity: 50mA @ 24V DC maximum for Standard Operating Force models
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute minimum
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N (standard), 2.65N (high operating force)
- Total Travel: 0.010 inch (0.254mm) for short actuator, 0.012 inch (0.300mm) for extended
- Actuator Material: Polyacetal for short; Glass fiber reinforced PBT for extended
- Case Material: Glass fiber reinforced polyamide (UL94V-0)
- Seal Material: Nitrile butadiene rubber
- Base Material: Glass fiber reinforced PBT (UL94V-0)
- Terminals: Brass with silver plating
- Operating Temperature: 25°C through +70°C (-13°F through +158°F)
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude of 1.5mm in 1 minute
- Shock: 50G (490m/s²) acceleration
- Soldering: Wave or manual soldering as per Profile A, suitable for automated cleaning
- Standards: UL9AV-0 rated case and base, not tested for UL recognition or CSA certification

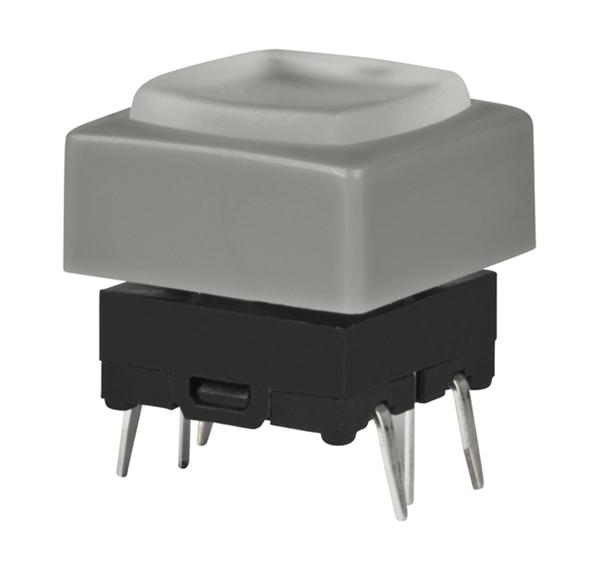

Buy the Buy NKK Series JB Part Number JB15LPEBH Online
Enhance your electronic control panels with the NKK Series JB JB15LPEBH illuminated tactile switch. Featuring bright LED illumination in multiple colors, sealed construction for dust-proof durability, and a long mechanical life of up to 5 million operations, this switch guarantees reliable performance in low-voltage, low-current circuits. Its compact, low-profile design with sealed rubber construction ensures high durability, easy soldering, and maintenance, making it an ideal choice for professional and custom electronic applications requiring quality tactile feedback and visibility.
Order your NKK Series JB JB15LPEBH today and give your electronic projects the dependable, illuminated tactile switch they deserve.
