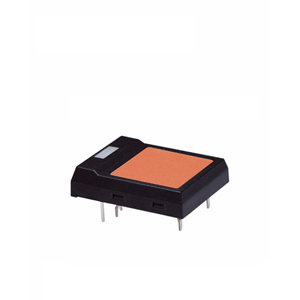

NKK Switches JF15RP1DF Illuminated Tactile Switch
Ultra-thin tactile illuminated push-button switch designed for PCB mounting offers a slim profile with tactile feedback and integrated illumination. Suitable for compact electronic devices, the switch features high reliability and long operational life, with options for spot or full face illumination in various colors. It provides quick actuation with minimal force, ensuring ease of operation in space-constrained applications. The switch construction includes sealed contacts for protection against contact contamination, making it ideal for automation, control panels, and consumer electronics requiring durable, low-profile tactile switches with LED lighting. Exact specifications include dimensions, electrical ratings, and illumination options suitable for low-current, circuit-sensitive applications.
NKK Switches JF15RP1DF Illuminated Tactile Switch Specifications:
- Flammability: UL 94V-0
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megaohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 500,000 operations minimum
- Operating Force: 3.0N flush, 2.0N sculptured actuators
- Actuator Types: Square, Round, Sculptured with illumination
- LED Colors: Red, Green, Yellow, Blue, Gray
- LED Forward Voltage: Varies from 2.1V to 2.3V
- LED Peak Current: 30-40mA
- Housing Material: Glass fiber reinforced polyamide
- Contact Material: Phosphor bronze with silver plating
- Operating Temperature: -13°F to +158°F
- Humidity: 90-95% for 96 hours at 40°C
- Terminal Type: Straight PC terminals, 2 PC terminations
- Size: 0.224” (5.7mm) profile from PCB to top of switch
- Soldering: Wave, Manual, Automated cleaning compatible
- Standards: Designed for low-voltage, low-current logic circuits.
Buy the Buy NKK Switches Series JF Part Number JF15RP1DF Online
Discover the convenience of online ordering for the NKK illuminated tactile switch. With its ultra-slim profile, sealed contacts, and multiple illumination options, this switch is ideal for space-constrained electronic applications. Its reliable tactile feedback and long operational life make it suitable for automation, control panels, and consumer devices. Easy to install with straight PC terminals, it ensures consistent performance in low-voltage, circuit-sensitive environments. Order now online and upgrade your electronic designs with this compact, high-quality switch for precision control and illumination needs.
Order your NKK Series JF JF15RP1DF illuminated tactile switch today and enhance your electronic projects with durable, space-efficient, low-profile tactile switches with integrated LED lighting.
