NKK Switches UB26SKW035C Low Profile Pushbutton
This low-profile illuminated pushbutton switch offers reliable operation with integrated LEDs in multiple colors, suitable for compact control panels. Designed with a snap-acting contact mechanism, it provides quick make/break switching with long electrical and mechanical life. Ideal for industrial and electronic equipment where space-saving, durability, and clear visibility are essential. Available in various LED colors, this switch features PCB mounting or solder terminals, high insulation resistance, and compliance with UL and CSA standards. It ensures safe, consistent performance in demanding environments.
NKK Switches UB26SKW035C Low Profile Pushbutton Specifications:
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC
- Voltage Rating: 125/250V AC, 30V DC, 0.4VA max @ 28V
- Contact Resistance: 50 milliohms silver, 100 milliohms gold
- Insulation Resistance: 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute, 1,500V AC to case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 1.9N for single pole, 2.55-3.10N for double pole
- Travel: Pretravel 1.7mm, Overtravel 0.6mm, Total 2.3mm
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Operating Temperature Range: -25°C to +50°C (illuminated), -20°C to +70°C (non-illuminated)
- Environmental Resistance: 95% humidity for 96 hours, vibration 3Hz-55Hz, shock 50G
- Standards & Certifications: UL Recognized, CSA Certified

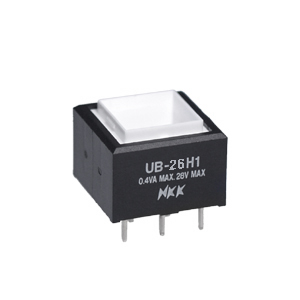

Buy the Buy NKK Series UB Low Profile Pushbutton Part Number UB26SKW035C Online
Order the NKK low profile illuminated pushbutton switch UB26SKW035C online today. Designed for durability and reliable switching, it features integrated LEDs for clear visibility, compact PCB mount or solder terminals, and complies with UL and CSA standards. Perfect for industrial control panels, electronic equipment, and spaces where space-saving and long life are critical. Enjoy quick, easy installation, high electrical ratings, and superior environmental resistance—ensuring consistent performance in demanding environments with easy online purchase and fast delivery.
Get NKK UB26SKW035C today—built for precision, long-lasting durability, and easy installation in compact control panels.
Frequently Asked Questions
Where can I buy NKK Switches UB26SKW035C?
You can click on the BUY or RFQ button to purchase UB26SKW035C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26SKW035C?
You can download the UB26SKW035C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26SKW035C?
NKK Switches
