NKK Switches KP0215ANBKG036E2FJB Illuminated Pushbutton
The KP Series single color illuminated pushbutton features a compact, durable design suitable for control panels, with bright LED illumination in white, yellow, or blue. It has a shorter travel of 0.138 inches (3.5mm) and a height of 0.906 inches (23.0mm) from PCB to top of the cap, offering smooth, silent actuation. Equipped with gold-plated contacts rated for 100mA at 12V DC and high reliability of 5 million operations, it’s ideal for low-voltage, logic-level circuits. Options include flat, sculptured, and home key caps with custom legends to suit various applications.
NKK Switches KP0215ANBKG036E2FJB Illuminated Pushbutton Specifications:
- Electrical Capacity: 100mA maximum @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC between contacts, 1 minute; 1,500V AC between contacts & case, 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.6N maximum
- Travel: Pretravel 0.091” (2.3mm), Overtravel 0.047” (1.2mm), Total Travel 0.138” (3.5mm)
- Materials: Plunger/Upper Housing - Glass fiber reinforced PBT (UL94V-0); Movable Contact - Gold over copper alloy; Lower Housing - Polyacetal; Stationary Contacts - Stainless steel with gold plating; Switch Terminals - Brass with fin plating
- Environmental Data: Operating Temperature Range -25°C to +50°C; Humidity 90-95% for 240 hours @ 40°C; Vibration 3 hours in 2 directions; Shock 51G in 6 directions
- Installation: Cap Installation Force - 1.6N; Soldering: Wave and Manual soldering specs; Cleaning: Use alcohol-based solution; UL94V-0 flammability
- Certifications: Not tested for UL recognition or CSA certification
- LED Specifications: Max Forward Current 30mA, Typical 20mA, Forward Voltage 3.2V, Reverse Voltage 5V, Ambient Temp -25°C to +50°C

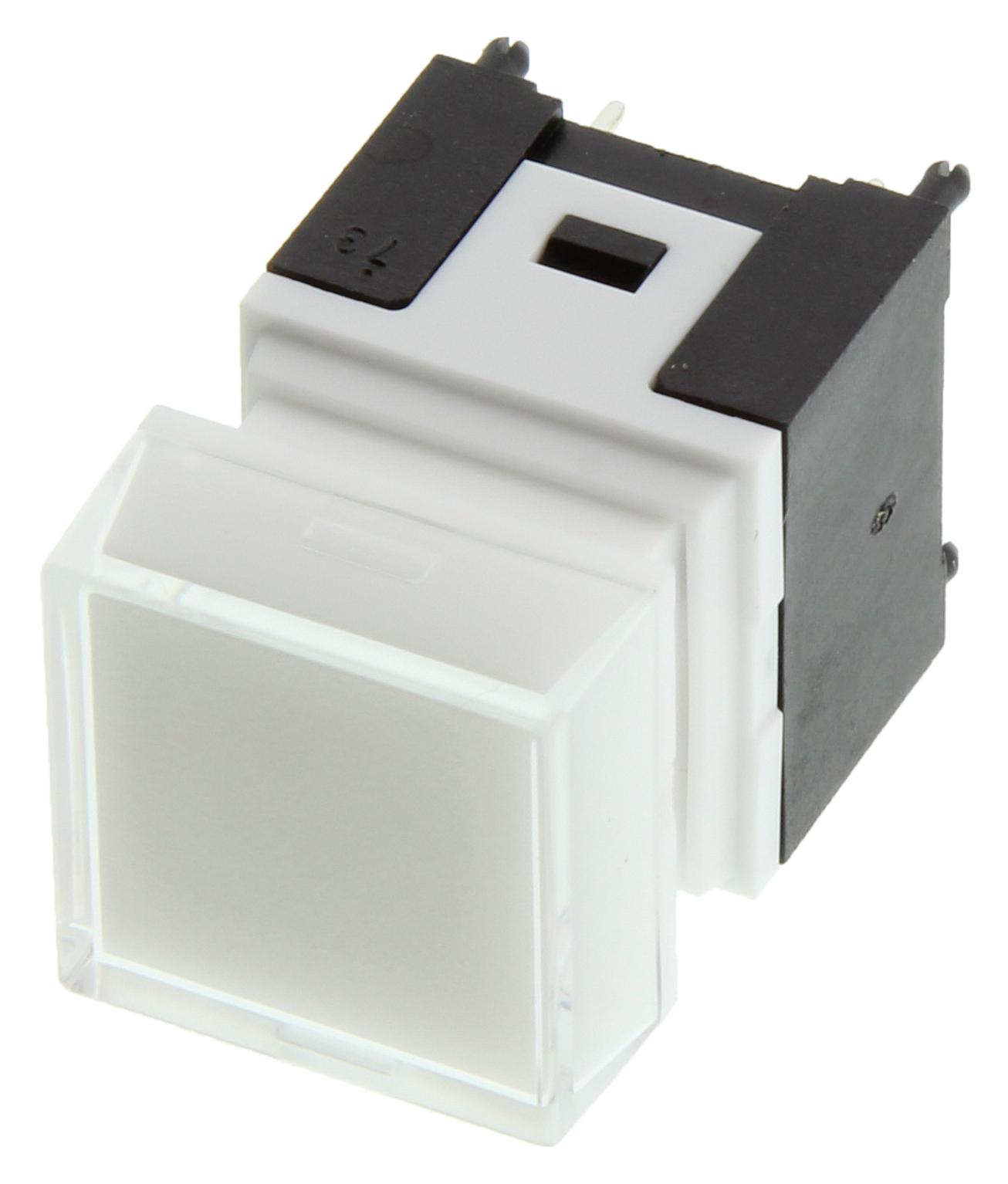

Buy the Buy NKK Switches Single Color Illuminated Pushbutton Part Number KP0215ANBKG036E2FJB Online
Enhance your control systems with the NKK Series KP0215ANBKG036E2FJB. This compact, high-reliability illuminated pushbutton features bright LEDs in white, yellow, or blue, offering a smooth, silent actuation with a travel of just 0.138 inches. Designed for low-voltage circuit applications, it provides a cycle life of 5 million operations, ensuring long-lasting performance. Easy to install with various cap options and custom legends, this switch is perfect for industrial and control panel environments. Buy online now for dependable operation and quick delivery.
Order your NKK Series KP0215ANBKG036E2FJB illuminated pushbutton today and enhance your control panels with bright LEDs and reliable contact operation.
Frequently Asked Questions
Where can I buy NKK Switches KP0215ANBKG036E2FJB?
You can click on the BUY or RFQ button to purchase KP0215ANBKG036E2FJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0215ANBKG036E2FJB?
You can download the KP0215ANBKG036E2FJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0215ANBKG036E2FJB?
NKK Switches
