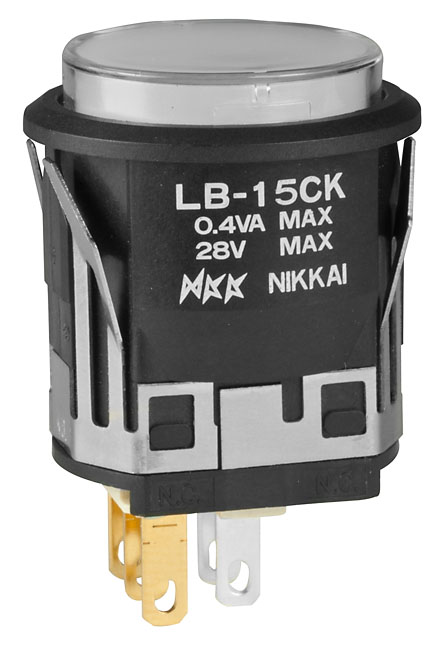

NKK Switches LB15CKG016FJB Industrial Control Pushbutton
This standard-sized illuminated pushbutton switch offers reliable snap-in mounting for diverse control applications. Featuring bright LED illumination with options for different colors and resistors, it ensures clear visual indication. The switch supports multiple configurations with various lens and cap styles, including transparent and colored filters, and accommodates incandescent, neon, and LED lamps. Housing materials are durable polycarbonate, and it provides long electrical and mechanical life. The model includes mounting clips, optional protective guards, and dust covers, meeting industry standards for quality and safety, making it ideal for industrial and control panel use.
NKK Switches LB15CKG016FJB Industrial Control Pushbutton Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Illumination: Bright LED, various colors including red, green, blue, amber, white
- Lamp Options: Incandescent, neon, LED (single and bicolor)
- Lens Types: Clear, colored, diffusers, lens filters
- Mounting: Snap-in, with stainless steel clips
- Environmental: Operating temperature -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Electrical Capacity: 3A @ 125V or 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: Max 50 milliohms for silver contacts
- Insulation Resistance: Min 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-case, 1,500V contact-to-contact
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations (maintained) and 1,000,000 (momentary)
- Operating Force: Not specified in provided data
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total 3.0mm
- Standards & Certifications: UL Recognized, CSA Certified, Meets IEC IEC60529 for IP65 panel sealing
- Panel Cutouts: 16.2mm x 16.2mm (square), other shapes available
- Additional Features: Latchdown, tactile feedback, optional protective guards, dust covers
Buy the NKK Series LB Illuminated Pushbutton: LB15CKG016FJB
Enhance your control panels with the durable, reliable NKK Series LB illuminated pushbutton switch. Featuring bright LEDs, various lens options, and easy snap-in installation, it provides clear visual indication and long service life. Suitable for industrial applications, panels, and machinery, this switch meets UL and CSA standards, ensuring safety and quality. Choose from multiple configurations, including incandescent, neon, and LED versions, with optional guards and dust covers for added protection. Purchase online today for quick delivery and dependable performance.
Order your NKK Series LB LB15CKG016FJB illuminated pushbutton today and give your control panels reliable and visually distinctive operation.
Frequently Asked Questions
Where can I buy NKK Switches LB15CKG016FJB?
You can click on the BUY or RFQ button to purchase LB15CKG016FJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CKG016FJB?
You can download the LB15CKG016FJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CKG016FJB?
NKK Switches
