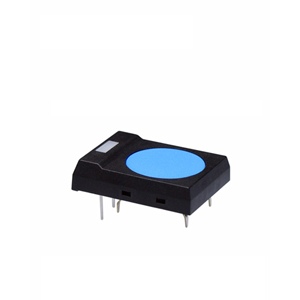

NKK Switches JF15RP2GC Illuminated Tactile Switch
This ultra-thin illuminated tactile switch offers reliable tactile feedback with LED illumination, optimized for PCB applications. It features minimal profile height of 0.224 inches, spot or full face illumination options, and a durable polyamide or polycarbonate housing. The switch is designed for low-voltage, low-current logic circuits, providing crisp tactile response and long operational life. Its compact size, secure crimped terminals, and compatibility with automated soldering and cleaning processes make it ideal for space-constrained electronic devices requiring high reliability and clear visual indicators.
NKK Switches JF15RP2GC Illuminated Tactile Switch Specifications:
- Profile Height: 0.224 inches (5.7mm)
- LED Colors: Red, Green, Yellow, Blue, Gray
- Actuator Types: Square, Round, Sculptured
- Lighting: Spot or Full Face Illumination
- Electrical Capacity: 50mA @ 24V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 500,000 operations minimum
- Operating Temperature: 25°C to 70°C (-13°F to 158°F)
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 3-55Hz, peak-to-peak amplitude 1.5mm, 1 minute
- Shock: 50G acceleration in multiple directions
- Material: Glass fiber reinforced polyamide or polycarbonate housing
- Contacts: Phosphor bronze or brass with silver plating
- Terminals: Crimped for secure mounting, 2 PC terminations
Buy the NKK JF15RP2GC – Reliable Illuminated Tactile Switch for Industrial Applications
Experience the high-reliability performance of the NKK illuminated tactile switch. Its ultra-thin profile, LED illumination options, and secure PCB mounting make it perfect for compact electronic designs. Designed for low-voltage circuits, it provides crisp tactile feedback and long operational life. Ideal for industrial, automation, and consumer electronics, this switch enables clear visual indication with minimal space consumption. Purchase online today to enhance your device's interface with proven quality and effortless installation for professional-grade performance.
Get NKK JF15RP2GC today—built for precision, long-lasting durability, and space-efficient electronic controls.
Frequently Asked Questions
Where can I buy NKK Switches JF15RP2GC?
You can click on the BUY or RFQ button to purchase JF15RP2GC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JF15RP2GC?
You can download the JF15RP2GC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JF15RP2GC?
NKK Switches
