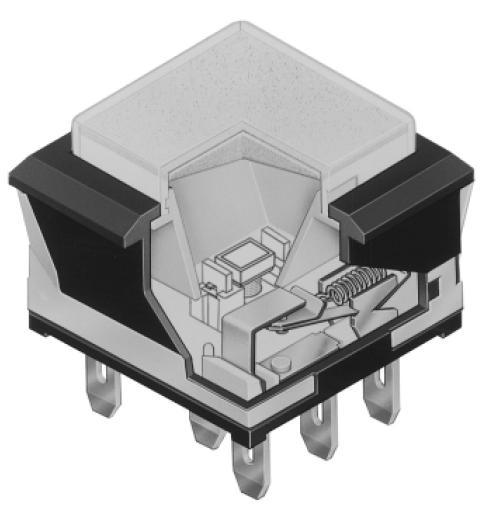

NKK Switches UB26KKW016FJB LED Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for PC and solder mount applications. It features a compact profile suitable for space-efficient designs and provides visual indication when activated.
NKK Switches UB26KKW016FJB LED Pushbutton Switch Specifications:
- Poles: Single & Double Pole
- Circuit Types: Momentary & Alternate Action
- Contact Material: Silver alloy or copper with gold plating
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts; 1,500V AC between contacts & case
- Electrical Life: 200,000 operations minimum for resistive load of 3A @ 125V AC
- Mechanical Life: 1,000,000 operations minimum
- Operating Temperature: -20°C to +70°C
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Cap Material & Color: Polycarbonate with various LED colors, label options available
- Panel Thickness Range: 0.039” to 0.126” (1.0mm to 3.2mm)
- Soldering Method: Wave or manual, profile A specified
- Note: Suitable for PCB mount, snap-in, with integrated LED, and optional protective accessories.
Buy the NKK Series UB LED Pushbutton: UB26KKW016FJB
Order the NKK UB26KKW016FJB LED pushbutton switch online today. Designed for durability and precise actuation, it features integrated LEDs in various colors, easy snap-in mounting, and broad environmental resistance. Perfect for compact electronic controls needing visual indication, this switch offers excellent electrical life, reliable dielectric strength, and compatibility with PCB and solder mountings. Enhance your device's interface with this space-efficient, high-performance pushbutton, available now for quick and convenient online purchase.
Get NKK UB26KKW016FJB today—built for precision and long-lasting durability, featuring high-quality illumination for reliable operation.
Frequently Asked Questions
Where can I buy NKK Switches UB26KKW016FJB?
You can click on the BUY or RFQ button to purchase UB26KKW016FJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26KKW016FJB?
You can download the UB26KKW016FJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26KKW016FJB?
NKK Switches
