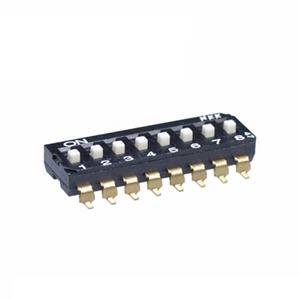

NKK Switches JS0208AP4R Miniature DIP Switch
This DIP switch module offers a compact and reliable solution for electronic circuit control, with multiple sliding switches in a standard DIP configuration. Designed for PCB mounting, it features gold-plated contacts for high contact reliability and corrosion resistance, UL94V-0 certified self-extinguishing material for high arc resistance, and gull-wing terminals for secure soldering. Available in extended and flush actuators with various positions, it supports low-voltage, low-current circuit applications with enduring mechanical and electrical life, making it suitable for industrial, automation, and consumer electronics.
NKK Switches JS0208AP4R Miniature DIP Switch Specifications:
- Electrical Capacity: 25mA @ 24V DC, 0.1A @ 50V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 2,000 operations minimum
- Electrical Life: 2,000 operations minimum
- Total Travel: Not specified
- Operating Temp Range: -20°C through +70°C for extended actuator, -30°C through +85°C for flush actuator
- Humidity: 90–95% for 96 hours @ 40°C
- Vibration: 10–55Hz, peak-to-peak amplitude of 1.5mm & 50G shocks
- Soldering: Reflow recommended, manual soldering as per Profile A
- Material & Finishes: Glass fiber reinforced polyamide (UL94V-0), contacts of beryllium copper or brass with gold plating
- Terminal Spacing: .100” (2.54mm) for JSO2, .050” (1.27mm) for JSO4
- Certifications: UL94V-0 rated cover and base, designed for low-voltage, low-current circuits
Buy the Buy NKK JSO2 Part Number JS0208AP4R Online
Purchase the NKK Miniature DIP Switch JS0208AP4R online today. This high-quality PCB switch features gold-plated contacts for corrosion resistance, UL94V-0 certified flame-retardant material, and secure gull-wing terminals for strong solder joints. Its extended 8-position configuration provides flexible circuit control, ideal for automation, industrial, and consumer devices. With a durable mechanical and electrical lifespan of at least 2000 operations, it ensures long-lasting performance. Order now for fast delivery, competitive pricing, and trusted quality for your electronic projects.
Get NKK JS0208AP4R today—built for reliable PCB control with high contact stability and UL94V-0 certified materials.
Frequently Asked Questions
Where can I buy NKK Switches JS0208AP4R?
You can click on the BUY or RFQ button to purchase JS0208AP4R from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JS0208AP4R?
You can download the JS0208AP4R datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JS0208AP4R?
NKK Switches
