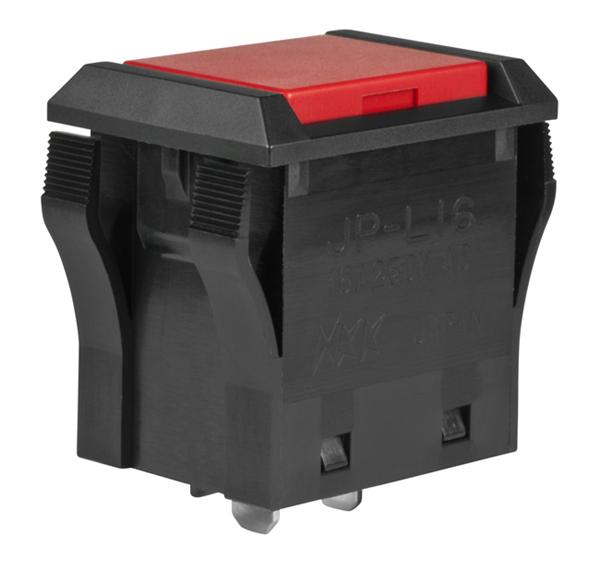

NKK Switches JPL16BC Power Pushbutton Switch
This power push button switch is designed for electronic circuit control and power initiation, featuring a user-friendly push-button interface. Constructed with high-quality polyamide housing, it meets UL94V-0 flammability standards and provides dust resistance with an interior PPS seal. Rated for 16A at 125/250V AC, it offers reliable switching with snap-action contacts and a mechanical life of 25,000 operations. The switch is available with flat cap and barrier flange actuators, and is suitable for industrial applications requiring durability, insulation resistance over 1,000 megaohms, and dielectric strength exceeding 2,000V AC.
NKK Switches JPL16BC Power Pushbutton Switch Specifications:
- Rated Power Level: 16A @ 125/250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megaohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 minute
- Electrical Life: 25,000 operations
- Mechanical Life: 25,000 operations
- Contact Material: Silver alloy
- Housing Material: Polyamide (UL94V-0)
- Seal Material: Polyphenylene sulfide (UL94V-0)
- Terminals: Brass with silver plating, molded and epoxy sealed
- Operating Temperature: -10°C to +70°C (+14°F to +158°F)
- Vibration Resistance: 10 ~ 55Hz, peak-to-peak amplitude 1.5mm for 1 min
- Shock Resistance: 50G in 6 directions
- Panel Thickness Range: 0.5mm to 4.0mm
- Panel Cutout: 0.187 inch (4.75mm) with quick connect terminals
- Standards & Certifications: UL94V-0, recognized with E44145, License No. 113494, UL and VDE approved
- Actuator: Flat cap with barrier flange, available in various colors, mounted flush or latchdown position
- Switch Type: Power push button with snap-action contact mechanism
Buy the NKK JPL16BC – Reliable Power Pushbutton for Industrial Applications
Order the NKK JPL16BC power pushbutton switch online today and enhance your control systems with a durable, UL-rated switch. This high-performing device offers a 16A current capacity at 125/250V AC, with dust-resistant sealing and snap-action contacts ensuring reliable operation over thousands of cycles. Its polyamide housing meets UL94V-0 standards for flammability, making it suitable for various industrial applications. Easy to install with a panel cutout of 0.187 inch, it is the ideal choice for engineers seeking quality and long-term performance in automation and control systems.
Get NKK JPL16BC today—engineered for durability and precise control in demanding industrial environments.
