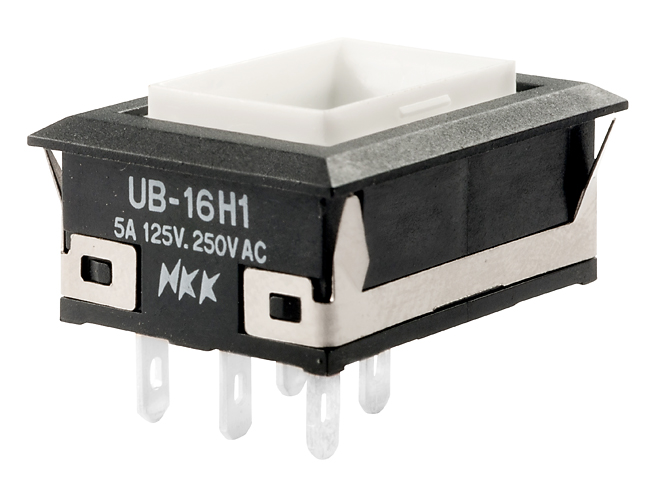

NKK Switches UB16NKW015F Low Profile Pushbutton
A low-profile, illuminated pushbutton switch suitable for PCB mounting and solder connections. Designed for easy operation and reliable illumination. This switch features a compact body, bright LED options, and high durability for professional and industrial applications. It offers quick-make, quick-break contact mechanism with tactile feedback, making it ideal for control panels, automation systems, and machinery interfaces. The switch's robust construction ensures long operational life, supported by certifications like UL and CSA, and is available in various LED colors and illumination configurations for versatile project use.
NKK Switches UB16NKW015F Low Profile Pushbutton Specifications:
- Poles & Circuits: SPDT, Double Pole options available
- Mounting Types: PCB Snap-in, Solder Lug, Built-in Bezel
- LED Colors & Ratings: Red, Amber, Green, White, Blue; Bright or Super Bright LEDs
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: Silver contacts 50 milliohms max; Gold contacts 100 milliohms max
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact to case for 1 min
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (alternate)
- Electrical Life: 100,000 operations with resistive load of 3A @ 125V AC
- Operating Temperature Range: -25°C to +50°C suitable for illuminated, -20°C to +70°C for non-illuminated models
- Key Materials: Housing/Bezel - UL94V-0 plastic, Contacts - Phosphor bronze, Contact Plating - Silver or gold
- Environmental Durability: Humidity 95% for 96 hours, Shock 50G, Vibration 3Hz to 55Hz, impact resistant design
- Certifications: UL Recognized, CSA Certified, compliant with flammability standards
Buy the Buy NKK Series UB Low Profile Pushbuttons Part Number UB16NKW015F Online
Discover the high-quality NKK Low Profile Pushbutton switch available for online purchase. Designed for durability and ease of use in control panels, this switch features bright LEDs, quick-make and break contacts, and a compact ergonomic design. Perfect for automation and machinery, it ensures long-lasting performance with robust materials, multiple mounting options, and certifications like UL and CSA. Buy online today and enhance your project with reliable, high-performance switch technology tailored to industrial standards.
Order your NKK Series UB Low Profile Pushbutton UB16NKW015F today and give your control panels the high-quality reliability they deserve.
Frequently Asked Questions
Where can I buy NKK Switches UB16NKW015F?
You can click on the BUY or RFQ button to purchase UB16NKW015F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16NKW015F?
You can download the UB16NKW015F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16NKW015F?
NKK Switches
