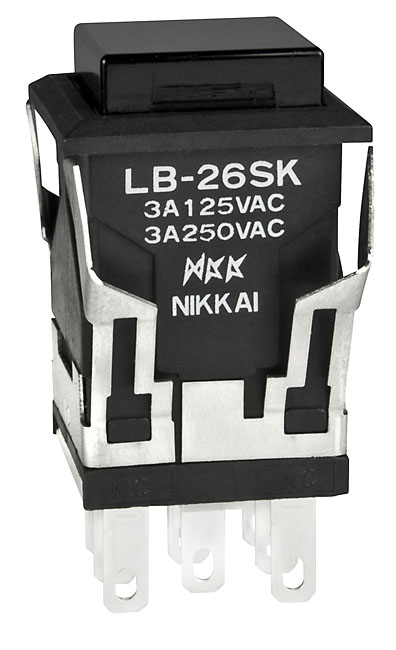

NKK Switches LB26SKW01A Illuminated Pushbutton Switch
This standard-sized illuminated pushbutton switch features a snap-in mounting mechanism, offering easy installation and dependable operation across a range of electronic and control systems. It includes options for LED illumination in several colors, with resistors for voltage compatibility. The switch’s robust construction with polycarbonate caps and stainless steel components ensures durability in demanding environments. Suitable for industrial controls, automation, and user interface applications, it provides long electrical life, tactile feedback, and panel seal protection up to IP65 standards, making it ideal for versatile industrial operation.
NKK Switches LB26SKW01A Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Contact Resistance: 50 milliohms max. (silver), 100 milliohms max. (gold)
- Insulation Resistance: 200 MΩ min. at 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: Not specified
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total Travel 0.118” (3.0mm)
- Operating Temperature Range: -25°C to +50°C (Illuminated), -25°C to +70°C (Non-illuminated)
- Panel Seal: Meets IP65 (IEC60529)
Buy the NKK LB26SKW01A – Reliable Illuminated Pushbutton for Industrial Applications
Purchase the NKK LB26SKW01A illuminated pushbutton switch online and ensure reliable control of your industrial machinery and equipment. Designed with a snap-in mounting system, it offers easy installation and long-lasting performance. The switch features bright LED illumination in multiple colors, suitable for diverse control panel designs. Its durable polycarbonate housing and stainless steel components withstand harsh environments and meet IP65 standards for splash-proof operation. Ideal for automation, industrial control, and user interface applications, this switch provides tactile feedback, high electrical life, and versatility to improve your project’s reliability and efficiency.
Order your NKK Series LB26SKW01A illuminated pushbutton today and enhance your control panels with dependable illumination and IP65 protection.
Frequently Asked Questions
Where can I buy NKK Switches LB26SKW01A?
You can click on the BUY or RFQ button to purchase LB26SKW01A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26SKW01A?
You can download the LB26SKW01A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26SKW01A?
NKK Switches
