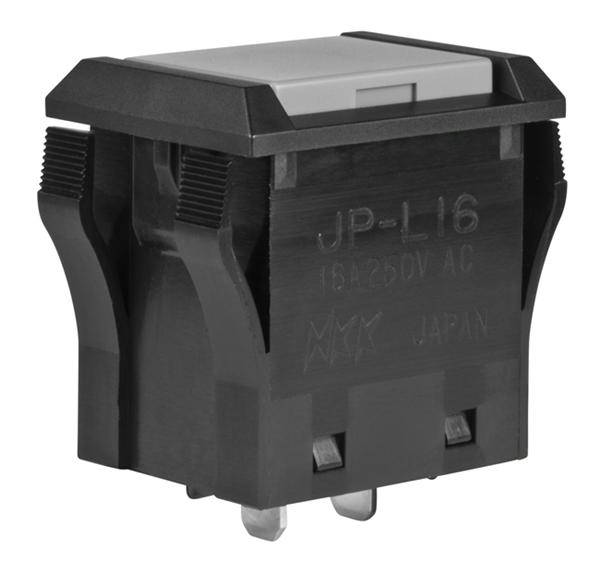

NKK Switches JPL16BH Power Push Button Switch
This power push button switch is designed for controlling electronic devices, offering a reliable push mechanism that supports a variety of industrial and electronic applications. It features high electrical capacity, robust construction with dust-resistant interior seals, and compliance with international safety standards. Suitable for assembly in control panels or machinery, it provides dependable operation with a snap-action contact mechanism, high dielectric strength, and certifications such as UL and VDE. Ideal for applications requiring durable and safe switching, it is a versatile and essential component in automation and control systems.
NKK Switches JPL16BH Power Push Button Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC for JPM models, 16A @ 125/250V AC for JPL models
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 minute; 4,000V AC minimum between contacts and case for 1 minute
- Mechanical Life: 25,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Nominal Operating Force: (not specified, standard for pushbuttons)
- Contact Timing: Nonshorting (break before make)
- Travel: Total travel 0.130” (3.3mm), pretravel 0.059” (1.5mm), overtravel 0.071” (1.8mm)
- Housing Material: Polyamide UL94V-0
- Contacts: Silver alloy
- Terminals: Brass with silver plating, epoxy sealed
- Operating Temperature Range: -10°C to +70°C
- Humidity: 90-95% for 96 hours at 40°C
- Vibration & Shock: Meets durability standards, 50G acceleration tested
- Standards & Certifications: UL, VDE approved; recognized under File No. E44145
- Certifications: UL Listed, VDE Approved
- Switch Type: Power, pushbutton, snap-action
- Dimensions & Panel Cutout: Uses 3-187” (4.75mm) quick connect terminals, suitable for panel thickness 0.5mm to 4.0mm
Buy the Buy NKK Power Push Button Switch Part Number JPL16BH Online
Purchase the NKK Power Push Button Switch JPL16BH online today and ensure reliable control in your electrical and automation projects. Designed for durability, it features dust resistance, high current ratings of 16A, and international certifications like UL and VDE. Suitable for panel mounting, it offers quick connection terminals and snap-action contact mechanism, making it ideal for industrial control panels, machinery, and automation systems. Order now to experience dependable operation and seamless integration into your control systems.
Get NKK JPL16BH today—built for reliable power control in industrial environments with dust-resistant seals and high current ratings.
Frequently Asked Questions
Where can I buy NKK Switches JPL16BH?
You can click on the BUY or RFQ button to purchase JPL16BH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JPL16BH?
You can download the JPL16BH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JPL16BH?
NKK Switches
